Widia

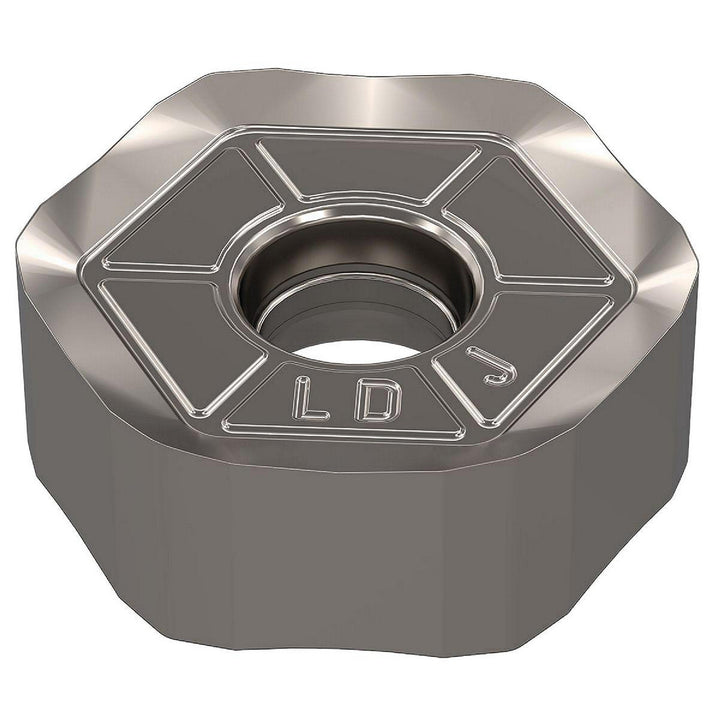

HNGJ0905ANFNLDJ Solid Carbide Insert, Grade TN6501, TiB2 - Widia 3865373
MFR# 3865373ISO/ANSI# HNGJ0905ANFNLDJCat# HNGJ535ANFNLDJSeries M1200
$26.62List $34.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeTN6501
MaterialSolid Carbide
CoatingTiB2
Description
The Widia 3865373 is a HNGJ0905ANFNLDJ solid carbide indexable insert, grade TN6501, TiB2 coated.
Specifications
Ansi codeHNGJ535ANFNLDJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM1200
Cutting edge styleSharp
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code0905
Insert styleHNGJ
Iso codeHNGJ0905ANFNLDJ
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ535ANFNLDJ
Manufacturer gradeTN6501
Material applicationNon-Ferrous Metal
Material gradeN03
Maximum depth of cut0.3379
Multi use toolYes
Number of cutting edges12
RakeNegative
Relief angle0.00
Secondary workpiece materialNon-Ferrous Metal
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
