Widia

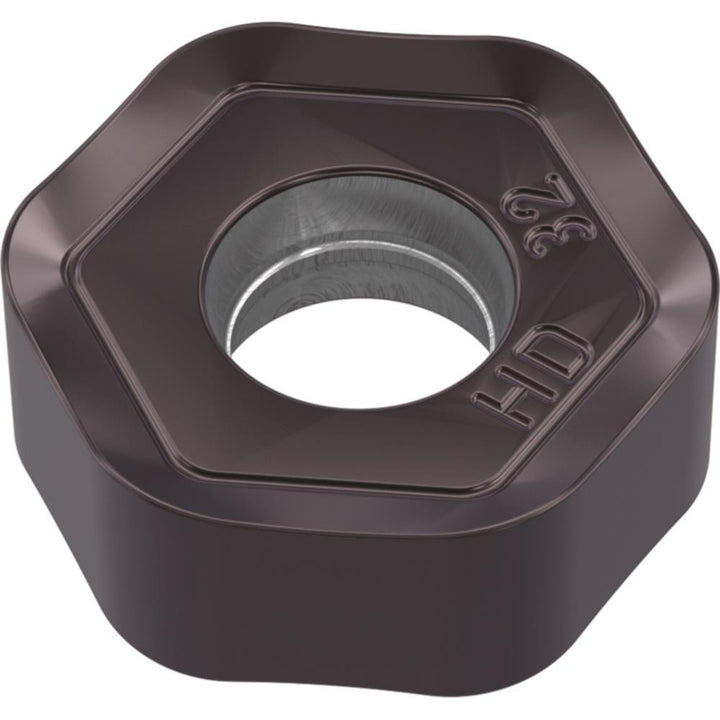

HNPJ070432ANSNHD Solid Carbide Insert, Grade TN6540, TiAlN - Widia 3954483
MFR# 3954483ISO/ANSI# HNPJ070432ANSNHDCat# HNPJ070432ANSNHDSeries M1200
$17.87List $22.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeHexagon
GradeTN6540
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 3954483 is a HNPJ070432ANSNHD solid carbide indexable insert, grade TN6540, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeHNPJ070432ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size07
Insert size code070432
Insert styleHNPJ
Iso codeHNPJ070432ANSNHD
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberHNPJ070432ANSNHD
Manufacturer gradeTN6540
Material applicationSuperalloys & Titanium; Cast Iron; Steel; Stainless Steel
Material gradeP40
Maximum depth of cut0.2692
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1741
Thickness range0.1500 to 0.1750
Width in1/2
