Widia

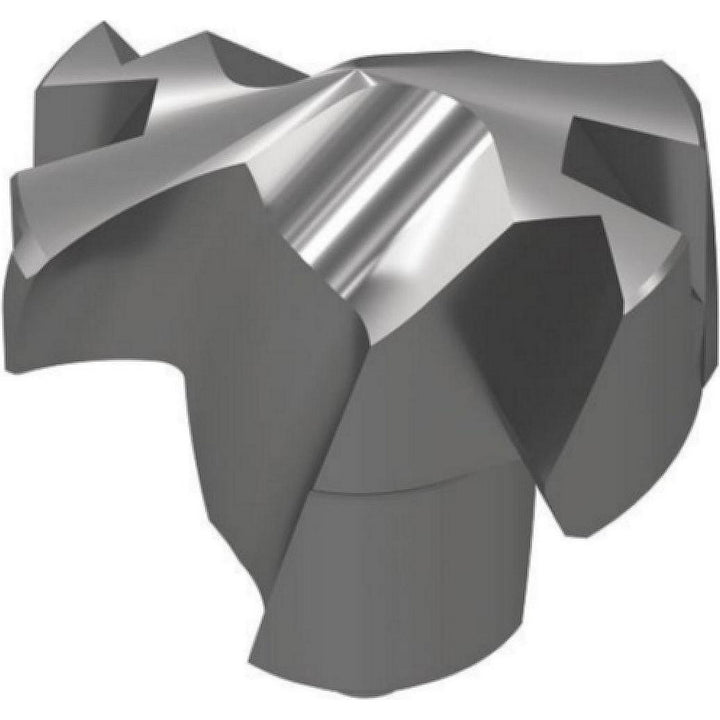

Carbide Insert, Grade WU25PD, TiAlN - Widia 4003204
MFR# 4003204Series TDM1
$154.63List $161.42
Save 4%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeWU25PD
CoatingTiAlN
Description
The Widia 4003204 is a carbide indexable insert, grade WU25PD, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling; Drilling - Through Coolant
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in7/8
DrillingInclined Exit
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4375
Height in7/16
Included angle degree140
Insert geometryUP
Insert holding methodClamp
Insert seat sizeW31
Iso numberTDM08750UP
Manufacturer gradeWU25PD
Material gradeSubmicron
Number of flutes2
Overall length projection0.4375
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleTDM1
Tip materialSolid Carbide
Tool dimensions2flute/2margin/coolant
