Widia

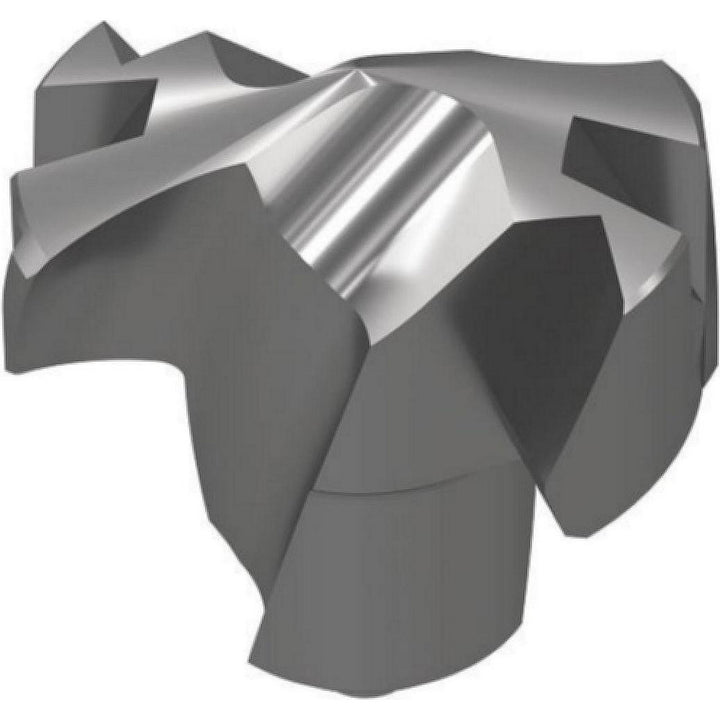

Carbide Insert, Grade WU25PD, TiAlN - Widia 4003229
MFR# 4003229Series TDM1
$151.94List $161.42
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeWU25PD
CoatingTiAlN
Description
The Widia 4003229 is a carbide indexable insert, grade WU25PD, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling; Drilling - Through Coolant
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)23.00
DrillingInclined Exit
Drill point angle140
Flute length (mm)12.00
Flute typeHelical
Functional length0.4625
Height (mm)12.00
Included angle degree140
Insert geometryUPM
Insert holding methodClamp
Insert seat sizeW32
Iso numberTDM2350UPM
Manufacturer gradeWU25PD
Material gradeSubmicron
Number of flutes2
Overall length projection0.4625
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleTDM1
Tip materialSolid Carbide
Tool dimensions2flute/2margin/coolant
