Widia

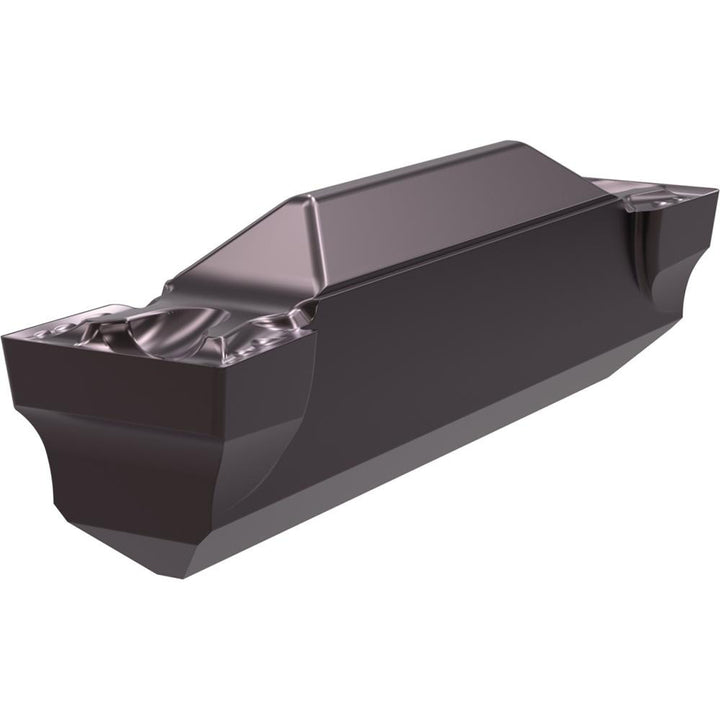

WMTS250I6P08PT Carbide Insert, Grade WU25PT, TiAlN - Widia 4118596
MFR# 4118596ISO/ANSI# WMTS250I6P08PTCat# WMTS250I6P08PTSeries WMT
$39.30List $50.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 4118596 is a WMTS250I6P08PT carbide indexable insert, grade WU25PT, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWMTS250I6P08PT
Chip breakerPT
Coating finishTiAlN
Coating processPVD
Corner radius0.0299
Cutting width in1/4in
Full radiusNo
Gage diameter in1/8
Insert handNeutral
Insert height0.2390
Insert holding methodClamp
Insert materialCarbide
Insert size6
Insert size code6
Insert styleWMT
Insert thickness0.2390
Iso codeWMTS250I6P08PT
Lead angle5degree
Manufacturers catalog numberWMTS250I6P08PT
Manufacturer gradeWU25PT
Maximum depth of cut1.0000
Maximum groove width (mm)6.34
Minimum groove width (mm)6.34
Multi use toolNo
Number of cutting edges2
Overall length1.1270in
Overall width0.1800in
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
