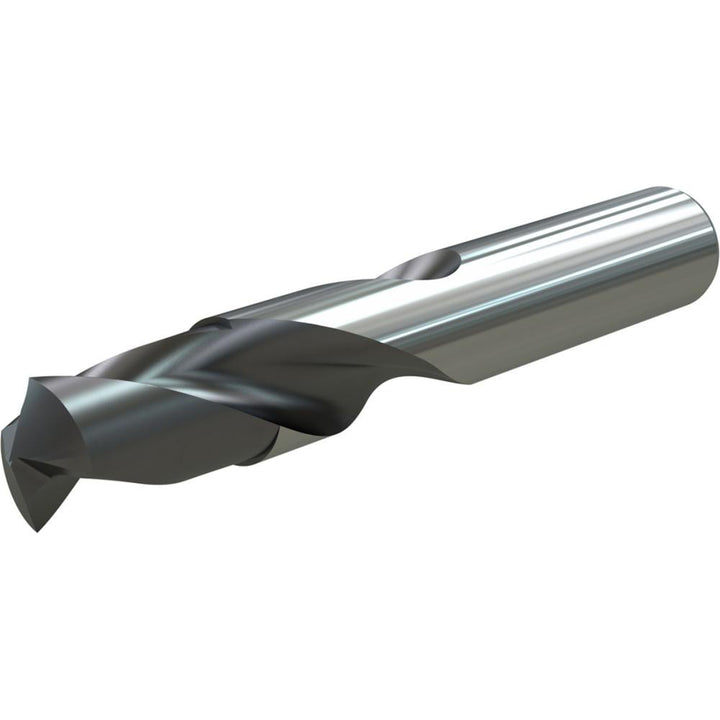

11/16" Solid Carbide Screw Machine Length Drill Bit, TiAlN, 140° point - Widia 4140253

Widia

11/16" Solid Carbide Screw Machine Length Drill Bit, TiAlN, 140° point - Widia 4140253

MFR# 4140253Series VDS401A

$543.09List $576.96 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/16
Flutes2
CoatingTiAlN

Description

The Widia 4140253 is a 11/16" Solid Carbide Screw Machine Length drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series VDS401A.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007/0.0000 in
Drill bit gradeGeneral Purpose
Drill bit size in11/16
Drill length typeScrew Machine Length
Drill point angle140
Drill point length0.1192
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length2.8740
Flute typeHelical
Material gradeCarbide
Maximum drilling depth2.0079
Number of flutes2
Overall length4.8425
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.7087
Shank length in1-57/64
Shank typeCylindrical
Spiral typeRegular Spiral
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
