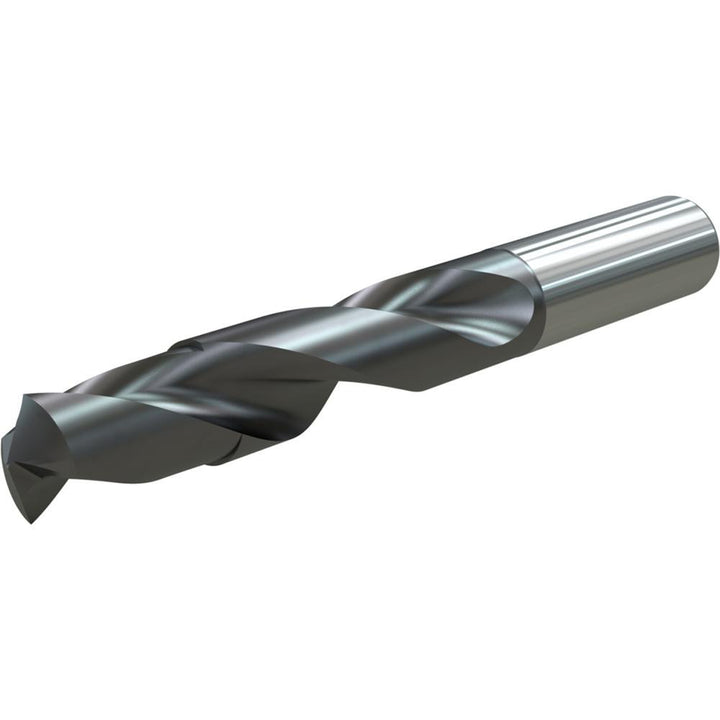

1/8" Jobber Length Drill Bit, TiAlN - Widia 4142849

Widia

1/8" Jobber Length Drill Bit, TiAlN - Widia 4142849

MFR# 4142849Series VDS402A

$121.75List $129.34 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiAlN

Description

The Widia 4142849 is a 1/8" Jobber Length drill bit with a TiAlN finish. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series VDS402A.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005/0.0000 in
Drill bit size in1/8
Drill length typeJobber Length
Drill point length0.0201
Drill tip finish coatingTiAlN
Flute by diameter ratio5xD
Flute length1.1024
Flute typeHelical
Maximum drilling depth0.9055
Number of flutes2
Overall length2.5984
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.2362
Shank length1.4173
Shank typeCylindrical Shank
Spiral typeRegular Spiral
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
