Widia

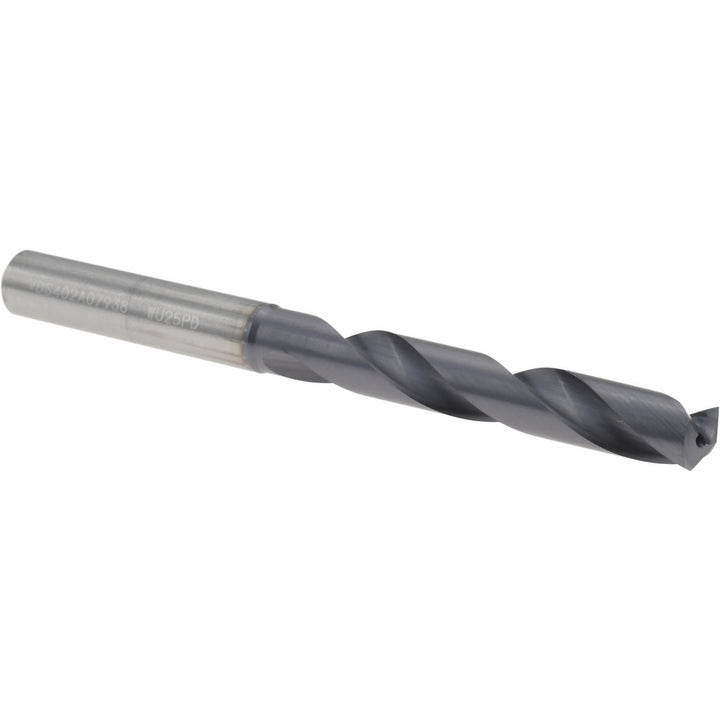

5/16" Drill Bit, TiAlN - Widia 4143066
MFR# 4143066Series VDS402A
$155.59List $165.30
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiAlN
Description
The Widia 4143066 is a 5/16" drill bit with a TiAlN finish. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series VDS402A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit size in5/16
Drill point length0.0530
Flute by diameter ratio5xD
Flute length2.0900
Flute typeSpiral
Maximum drilling depth1.6900
Number of flutes2
Overall length3.58
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.3150
Shank length1.4200
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
