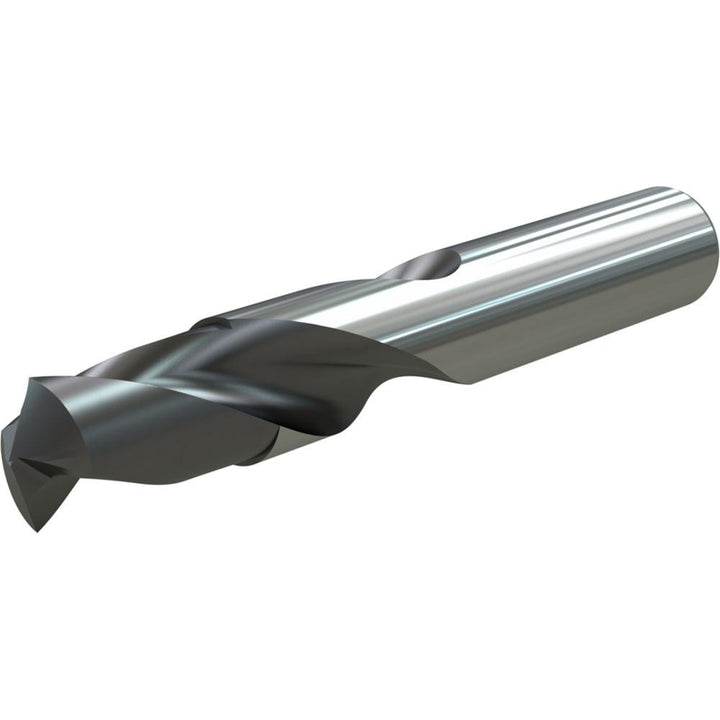

7/32" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143951

Widia

7/32" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143951

MFR# 4143951Series VDS201A

$73.31List $77.89 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingTiAlN

Description

The Widia 4143951 is a 7/32" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series VDS201A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit size in7/32
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0370
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length1.1000
Flute typeRegular Spiral
Maximum drilling depth0.7900
Number of flutes2
Overall length2.6000
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2362
Shank length1.4200
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
