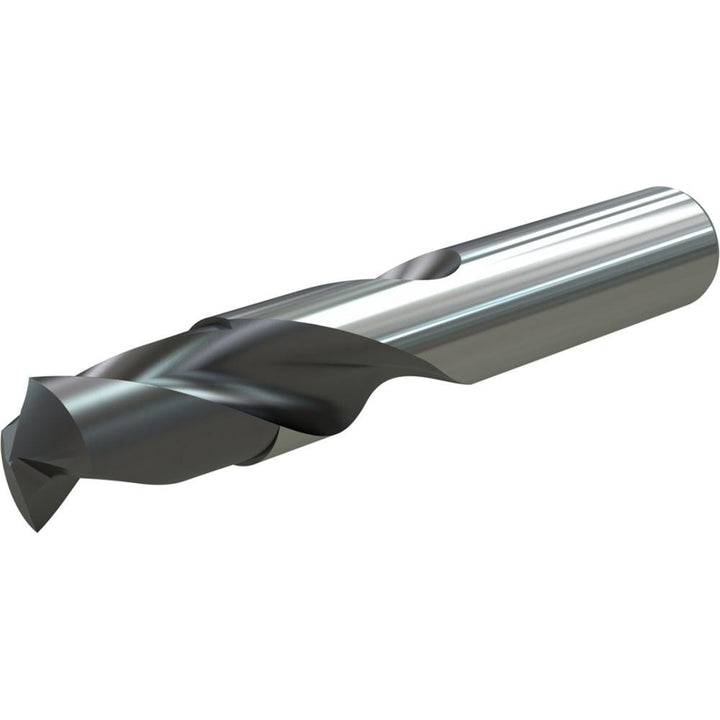

0.2441" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143960

Widia

0.2441" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143960

MFR# 4143960Series VDS201A

$77.80List $82.55 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Widia 4143960 is a 0.2441" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series VDS201A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.015 to 0.000 mm
Drill bit gradeGeneral Purpose
Drill bit size0.2441
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.04
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length (mm)79.00
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)8.00
Shank length (mm)36.00
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
