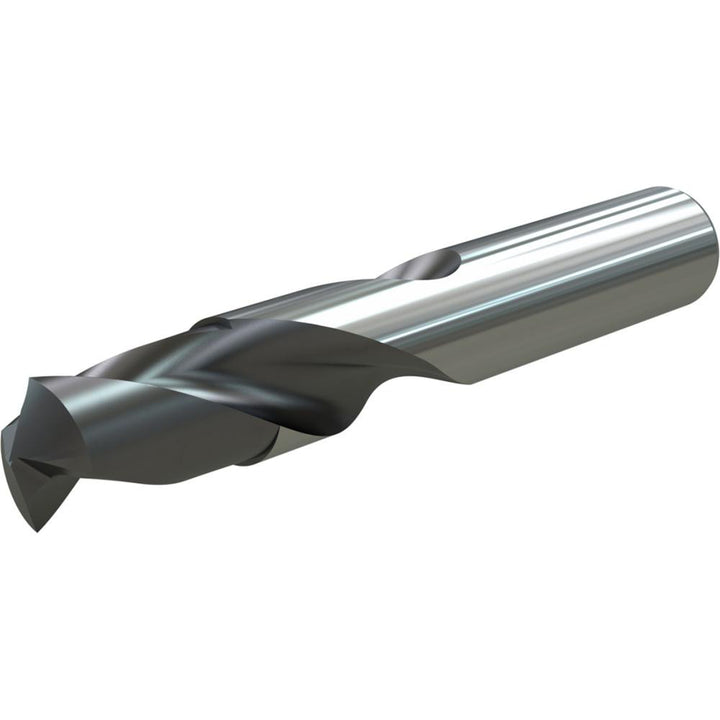

5/16" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143984

Widia

5/16" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143984

MFR# 4143984Series VDS201A

$80.21List $85.21 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiAlN

Description

The Widia 4143984 is a 5/16" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1-39/64 flute length, 3-7/64 overall length. Series VDS201A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit size in5/16
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0530
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length in1-39/64
Flute typeSpiral
Maximum drilling depth1.1400
Number of flutes2
Overall length in3-7/64
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.3150
Shank length1.4200
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
