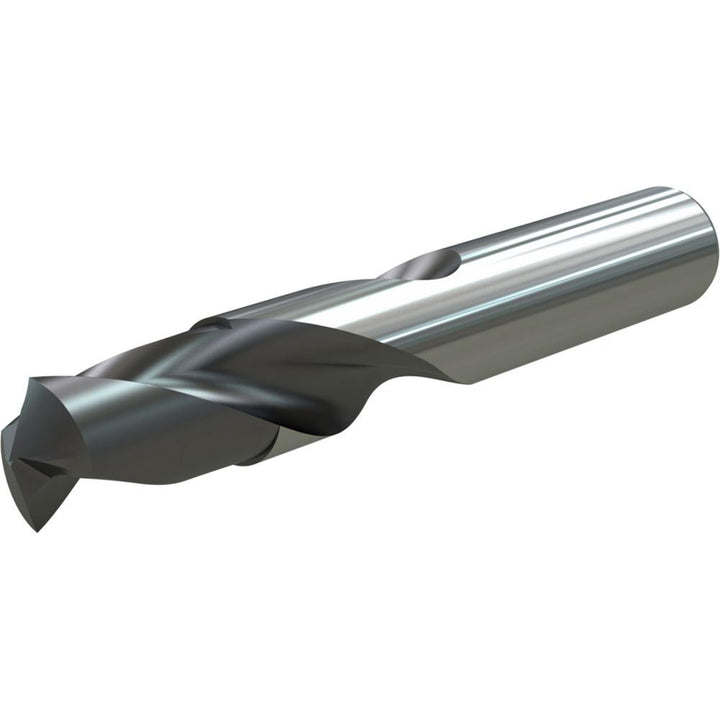

11/32" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143995

Widia

11/32" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Widia 4143995

MFR# 4143995Series VDS201A

$90.15List $113.61 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiAlN

Description

The Widia 4143995 is a 11/32" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 3-1/2 overall length. Series VDS201A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit size in11/32
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0580
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length1.8500
Flute typeRegular Spiral
Maximum drilling depth1.3800
Number of flutes2
Overall length in3-1/2
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3937
Shank length1.5700
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
