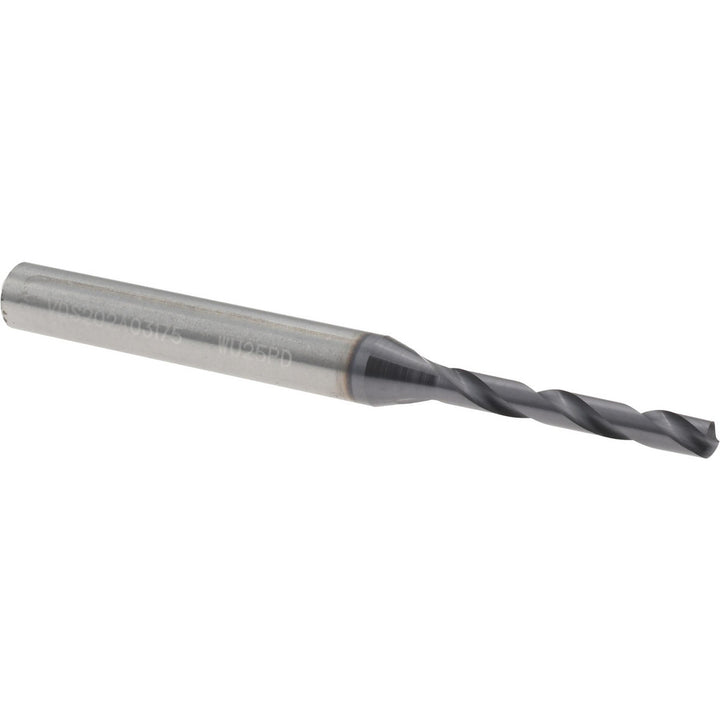

1/8" Drill Bit, TiAlN - Widia 4148145

Widia

1/8" Drill Bit, TiAlN - Widia 4148145

MFR# 4148145Series VDS202A

$90.07List $95.69 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiAlN

Description

The Widia 4148145 is a 1/8" drill bit with a TiAlN finish. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series VDS202A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit size in1/8
Drill point length0.0200
Flute by diameter ratio5xD
Flute length1.1000
Flute typeSpiral
Maximum drilling depth0.9100
Number of flutes2
Overall length2.6
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.2362
Shank length1.4200
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
