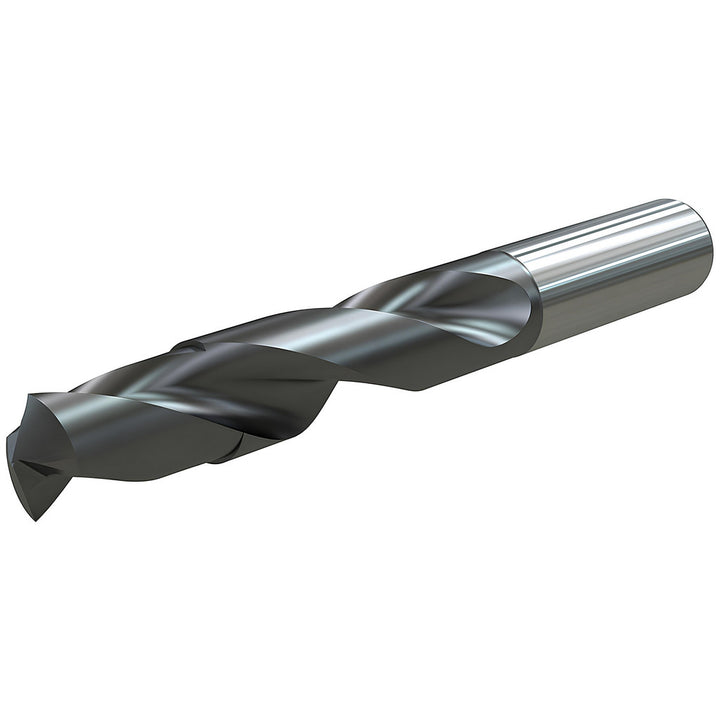

0.5354" Solid Carbide Drill Bit, TiAlN, 140° point - Widia 4148351

Widia

0.5354" Solid Carbide Drill Bit, TiAlN, 140° point - Widia 4148351

MFR# 4148351Series VariDrill

$174.54List $189.06 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Widia 4148351 is a 0.5354" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, cast iron, high-temp alloy. 3-1/32 flute length, 3-1/32 overall length. Series VariDrill.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance-0.018000 to 0.000000 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5354
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length0.0921
Flute by diameter ratio5xD
Flute length in3-1/32
Flute typeRegular Spiral
Material gradeWU25PD
Maximum drilling depth2.3620
Number of flats0
Number of flutes2
Overall length in3-1/32
Point typeStandard
Primary workpiece materialSteel; Cast Iron; High-Temp Alloy
Shank diameter0.5512
Shank length1.7710
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
