Widia

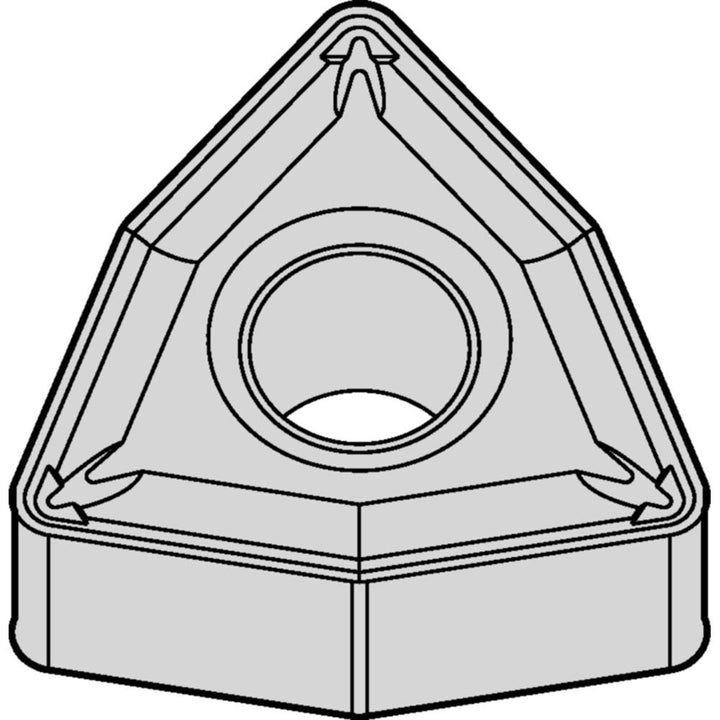

WNMG0804082P Carbide Insert, Grade TN10U, TiAlN - Widia 4166305
MFR# 4166305ISO/ANSI# WNMG4322PSeries WNMG-2P
$14.21List $17.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTN10U
MaterialCarbide
CoatingTiAlN
Description
The Widia 4166305 is a WNMG0804082P carbide indexable insert, grade TN10U, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breaker2P
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG4322P
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code4322
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG0804082P
Length range0.6500 - 0.7000
Manufacturers catalog number4166305
Manufacturer gradeTN10U
Material gradeS10
Maximum depth of cut0.0531
Multi use applicationTurning
Multi use toolNo
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
