Widia

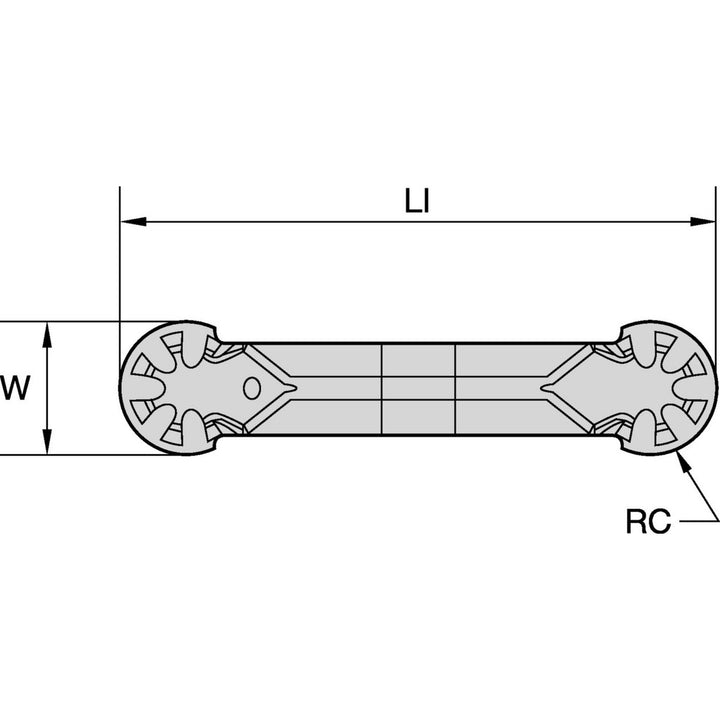

WMTR188I5PPC Carbide Insert, Grade WU25PT, AlTiN - Widia 4170120
MFR# 4170120ISO/ANSI# WMTR188I5PPCSeries WMT
$38.10List $48.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingAlTiN
Description
The Widia 4170120 is a WMTR188I5PPC carbide indexable insert, grade WU25PT, AlTiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWMTR188I5PPC
Chip breakerPC
Coating finishAlTiN
Coating processPVD
Corner radius in3/32
Cutting width0.1880
Included angle degree90
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code5
Insert styleWMTR
Iso codeWMTR188I5PPC
Lead angle0
Manufacturer gradeWU25PT
Maximum depth of cut1.0340
Measurement typeDecimal Inch
Multi use toolYes
Number of cutting edges2
Overall length1.128
Overall width in3/16
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle6
Secondary workpiece materialCast Iron; Steel; Stainless Steel; Non-Ferrous Metal
