Widia

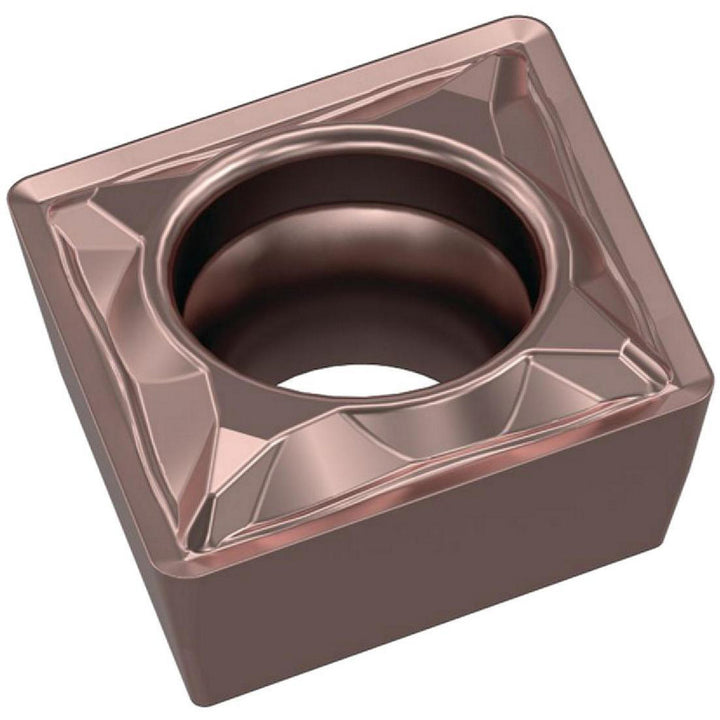

CPMT060204FP Carbide Insert, Grade WP25CT, TiN - Widia 4170326
MFR# 4170326ISO/ANSI# CPMT060204Series CPMT-FP
$7.60List $9.75
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWP25CT
MaterialCarbide
CoatingTiN
Description
The Widia 4170326 is a CPMT060204FP carbide indexable insert, grade WP25CT, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPMT2151
Ansi size code2151
Chip breakerFP
Clearance codeP
Coating finishTiN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204FP
Iso insert codeCPMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number4170326
Manufacturer gradeWP25CT
Material gradeP25
Maximum depth of cut0.9400
Multi use applicationTurning
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle23
Relief angle11
Secondary workpiece materialCast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
