Widia

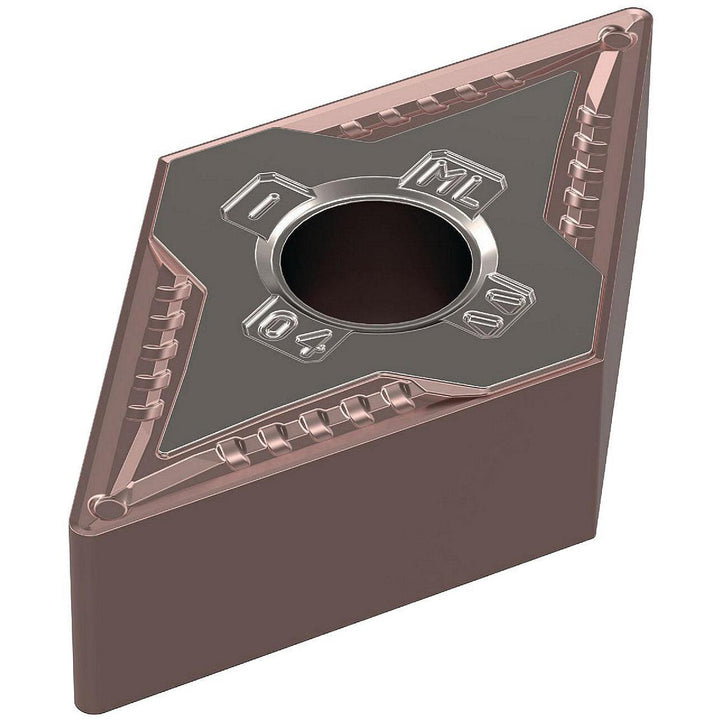

DNMG150408ML Carbide Insert, Grade WP25CT, TiN - Widia 4170484
MFR# 4170484ISO/ANSI# DNMG432MLSeries DNMG-ML
$11.85List $15.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic
GradeWP25CT
MaterialCarbide
CoatingTiN
Description
The Widia 4170484 is a DNMG150408ML carbide indexable insert, grade WP25CT, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerML
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNMG432ML
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeRhombic
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408ML
Length range0.7000 - 10.0000
Manufacturers catalog number4170484
Manufacturer gradeWP25CT
Material gradeP25
Maximum depth of cut0.1580
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
