Widia

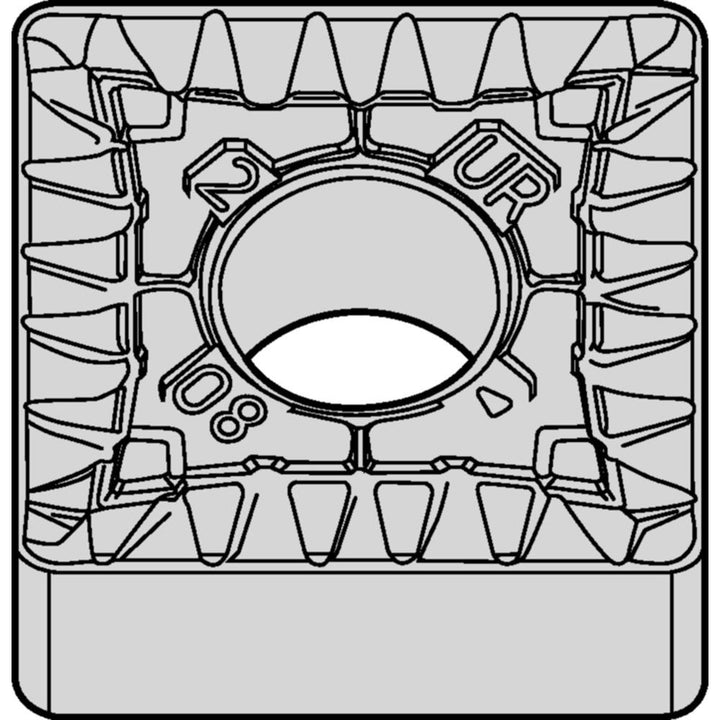

SNMG120408UR Carbide Insert, Grade WP25CT, TiN - Widia 4170516
MFR# 4170516ISO/ANSI# SNMG120408Series SNMG-UR
$7.05List $9.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeWP25CT
MaterialCarbide
CoatingTiN
Description
The Widia 4170516 is a SNMG120408UR carbide indexable insert, grade WP25CT, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerUR
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle90
Industry standard numberSNMG432UR
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408UR
Iso insert codeSNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number4170516
Manufacturer gradeWP25CT
Material gradeP25
Maximum depth of cut0.2345
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle11
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
