Widia

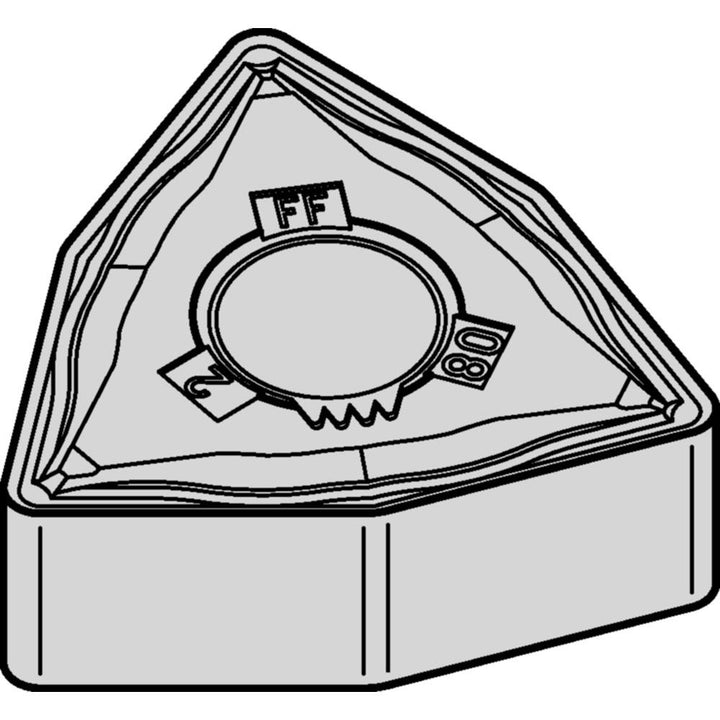

WNMG080404FF Carbide Insert, Grade WP15CT, TiN - Widia 4171057
MFR# 4171057ISO/ANSI# WNMG431FFSeries WNMG-FF
$9.27List $11.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWP15CT
MaterialCarbide
CoatingTiN
Description
The Widia 4171057 is a WNMG080404FF carbide indexable insert, grade WP15CT, TiN coated. Suited for steel.
Specifications
Chip breakerFF
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberWNMG431FF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404FF
Length range0.6500 - 0.7000
Manufacturers catalog number4171057
Manufacturer gradeWP15CT
Material gradeP15
Maximum depth of cut0.1230
Multi use applicationTurning
Multi use toolNo
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle12
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
