Widia

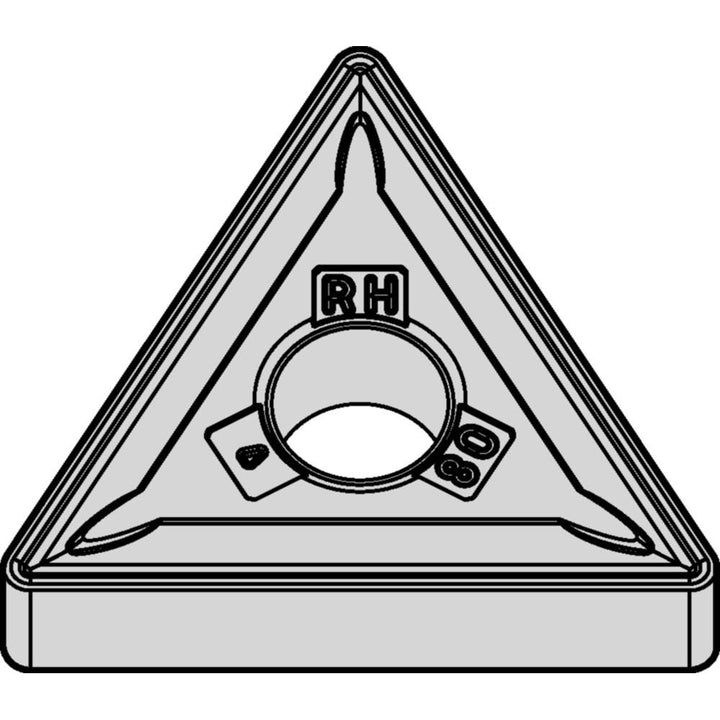

TNMG220408RH Carbide Insert, Grade WP25CT, TiN - Widia 4171544
MFR# 4171544ISO/ANSI# TNMG432RHSeries TNMG-RH
$8.19List $10.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeWP25CT
MaterialCarbide
CoatingTiN
Description
The Widia 4171544 is a TNMG220408RH carbide indexable insert, grade WP25CT, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRH
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle60
Industry standard numberTNMG432RH
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408RH
Length range0.7000 - 10.0000
Manufacturers catalog number4171544
Manufacturer gradeWP25CT
Material gradeP25
Maximum depth of cut0.2887
Multi use applicationTurning
Multi use toolNo
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
