Widia

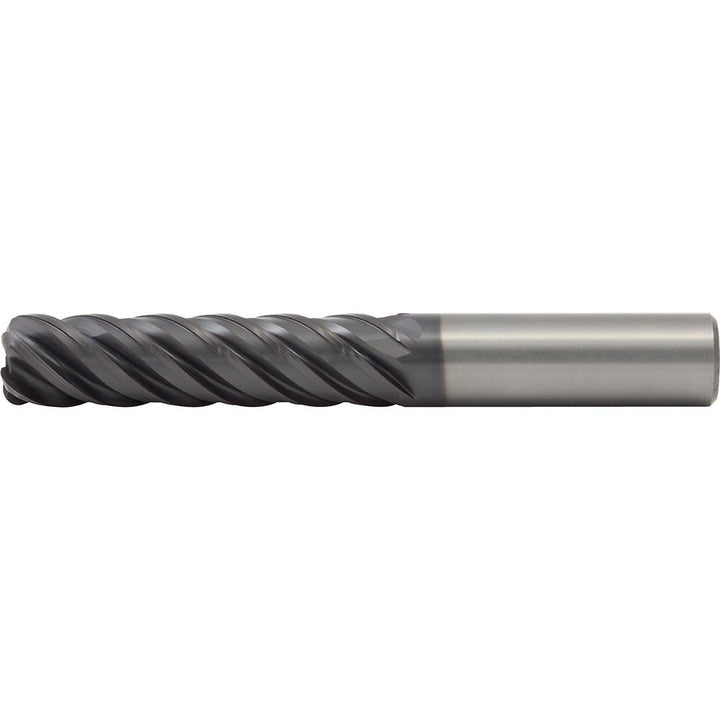

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Widia 5095428

MFR# 5095428Series 5W1S

$222.28List $285.09 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 5095428 is a 5/8 5-flute Solid Carbide (AlTiN-MT) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high temperature alloy, hard material. 2-1/2 length of cut, 5-1/4 overall length. Series 5W1S.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in2-1/2

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeAlTiN-MT

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes5

Overall length in5-1/4

PitchClose

Primary workpiece materialSteel; Stainless Steel; High Temperature Alloy; Hard Material

Reach length in2-1/2

Secondary workpiece materialCast Iron

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
