Widia

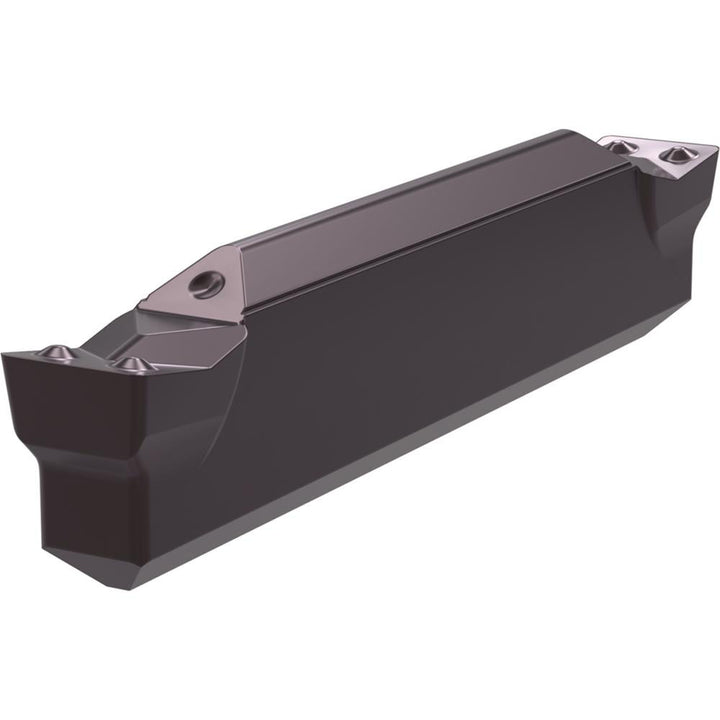

WMTS125I3P08PH Carbide Insert, Grade WU25PT, TiAlN - Widia 5331093
MFR# 5331093ISO/ANSI# WMTS125I3P08PHCat# WMTS125I3P08PHSeries WMT
$42.99List $54.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 5331093 is a WMTS125I3P08PH carbide indexable insert, grade WU25PT, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWMTS125I3P08PH
Chip breakerPH
Coating finishTiAlN
Coating processPVD
Corner radius0.0295
Cutting width in1/8
Full radiusNo
Gage diameter in3/32
Insert handNeutral
Insert height0.1830
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert size code3
Insert styleWMT
Insert thickness0.1830
Iso codeWMTS125I3P08PH
Lead angle5
Manufacturers catalog numberWMTS125I3P08PH
Manufacturer gradeWU25PT
Maximum depth of cut1.0000
Maximum groove width (mm)3.18
Minimum groove width (mm)3.18
Multi use toolNo
Number of cutting edges2
Overall length in1
Overall width in3/32
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
