Widia

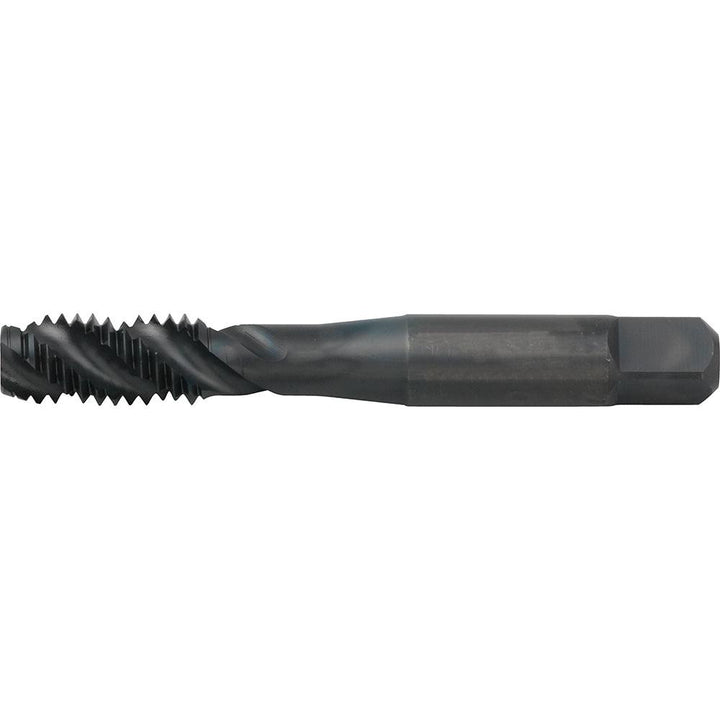

1/4-20 UNC High-Speed Steel Tap, Oxide - Widia 5364451
MFR# 5364451Series VTSFT
$29.98List $38.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingOxide
Description
The Widia 5364451 is a 1/4-20 UNC High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Number of flutes3
Overall length2.5000
Shank diameter0.2550
Square size0.1890
Tapping depth1.0000
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread pitch0.0500
Thread size in1/4-20
Thread standardUNC
