Widia

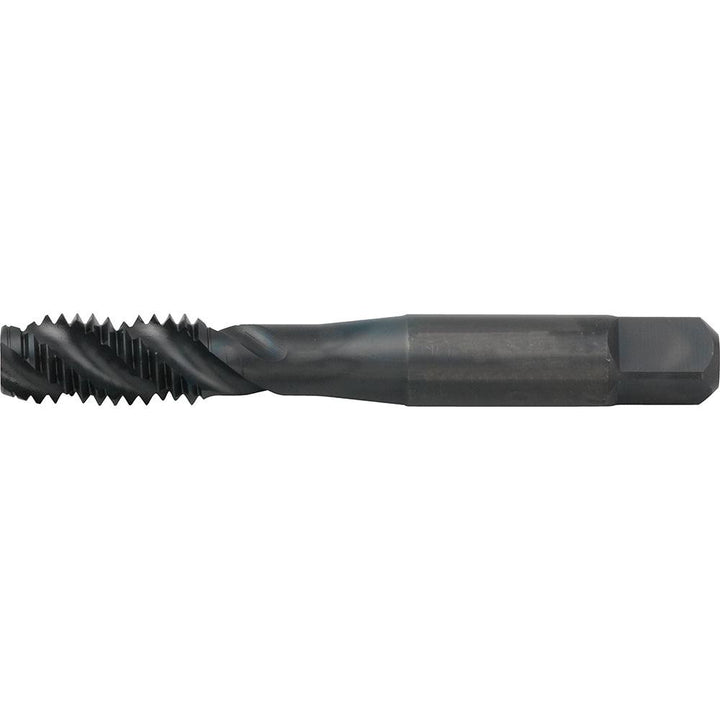

5/16-18 UNC High-Speed Steel Tap, TiN - Widia 5364503
MFR# 5364503Series VTSFT
$32.04List $40.37
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiN
Description
The Widia 5364503 is a 5/16-18 UNC High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
MaterialHigh-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWU41EG
Number of flutes3
Overall length2.7200
Shank diameter0.3180
Square size0.2360
Tapping depth1.1300
Threads per inch18
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
