Widia

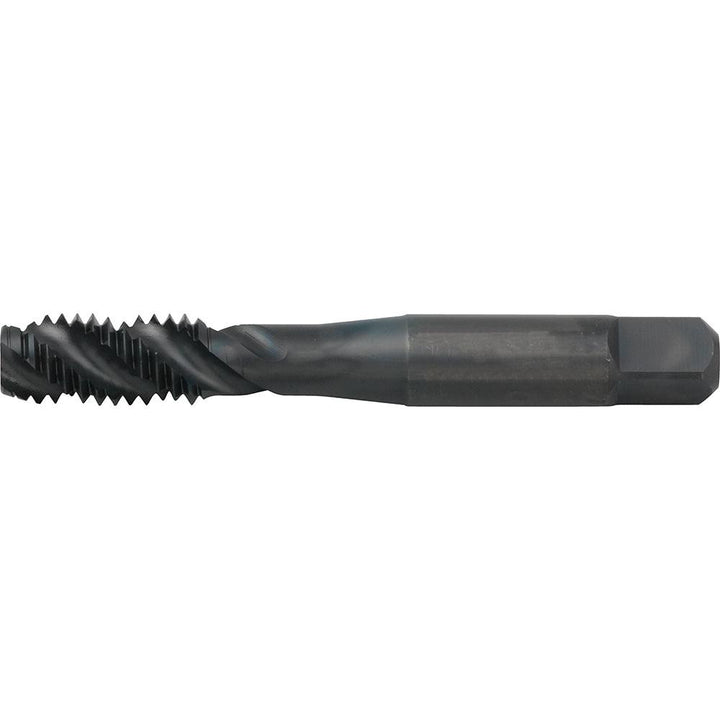

1/2-13 UNC High-Speed Steel Tap, Oxide - Widia 5364624
MFR# 5364624Series VTSFT
$78.11List $98.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingOxide
Description
The Widia 5364624 is a 1/2-13 UNC High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Number of flutes3
Overall length3.3800
Shank diameter0.3670
Square size0.2720
Tapping depth1.6500
Threads per inch13
Thread directionRight Hand
Thread length0.9400
Thread limitH3
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
