Widia

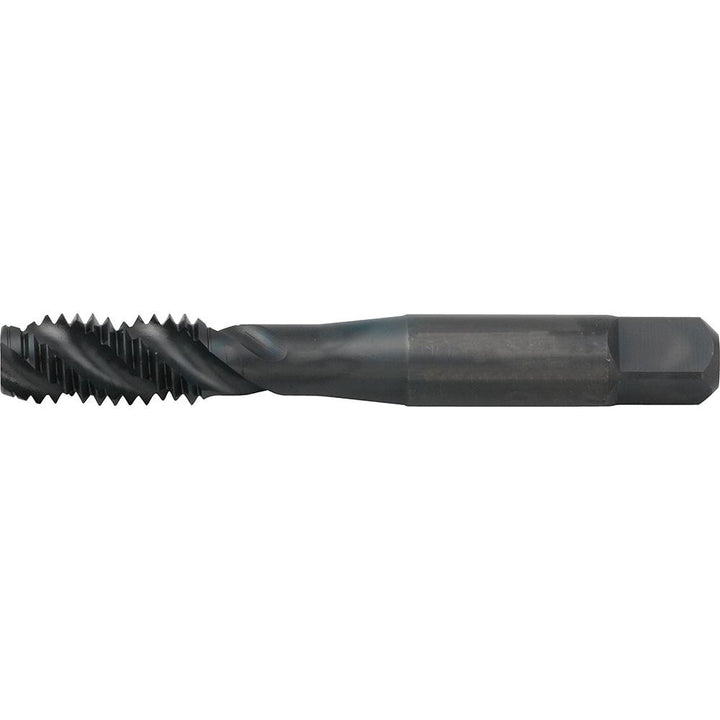

1-8 UNC High-Speed Steel Tap, Oxide - Widia 5364726
MFR# 5364726Series VTSFT
$232.21List $297.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingOxide
Description
The Widia 5364726 is a 1-8 UNC High-Speed Steel tap with a Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Number of flutes4
Overall length5.1300
Shank diameter0.8000
Square size0.5970
Tapping depth2.5800
Threads per inch8
Thread directionRight Hand
Thread length1.5000
Thread limitH5
Thread pitch0.1250
Thread size in1-8
Thread standardUNC
