Widia

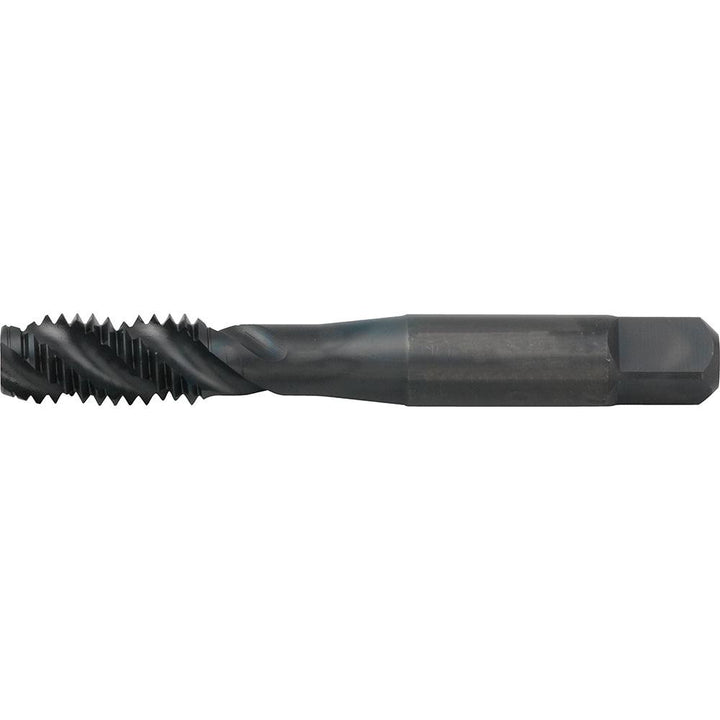

M10x1 Metric High-Speed Steel Tap, TiCN - Widia 5365567
MFR# 5365567Series VTSFT
$67.74List $86.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Widia 5365567 is a Metric High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
MaterialHigh-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWP42EG
Number of flutes3
Overall length (mm)74.00
Shank diameter (mm)9.68
Square length (mm)11.10
Square size (mm)7.21
Threads per inch25
Thread directionRight Hand
Thread length (mm)18.70
Thread limitD5
Thread pitch (mm)1.00
Thread size (mm)M10x1
Thread standardMetric
