Widia

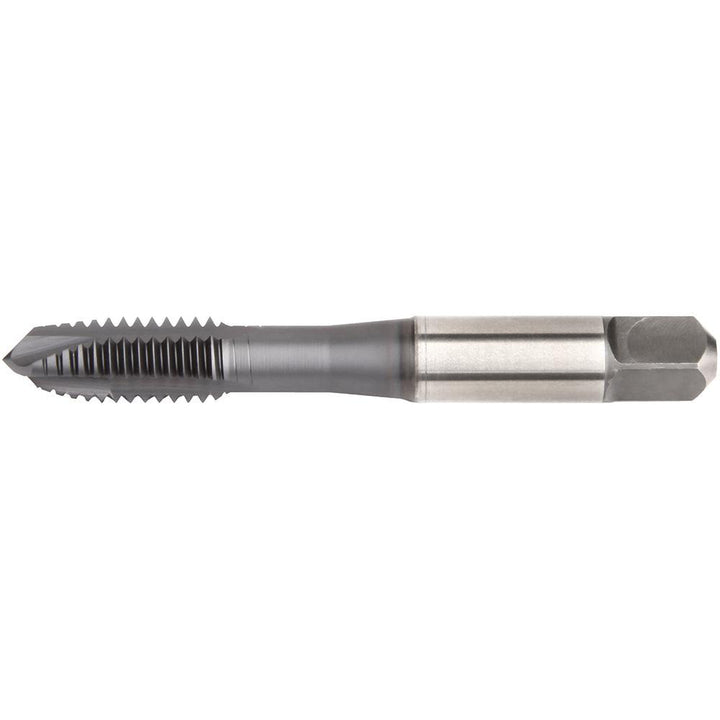

#10-32 UNF HSS-E Spiral Point Tap, Black Oxide - Widia 5365763
MFR# 5365763Series VT-SPO
$19.20List $24.21
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingBlack Oxide
Description
The Widia 5365763 is a #10-32 UNF HSS-E Spiral Point tap with a Black Oxide finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH3
Coating finishBlack Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Neck length0.4100
Number of flutes2
Overall length2.36
OversizeNo
Shank diameter0.1940
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread pitch0.0313
Thread size in#10-32
Thread standardUNF
