Widia

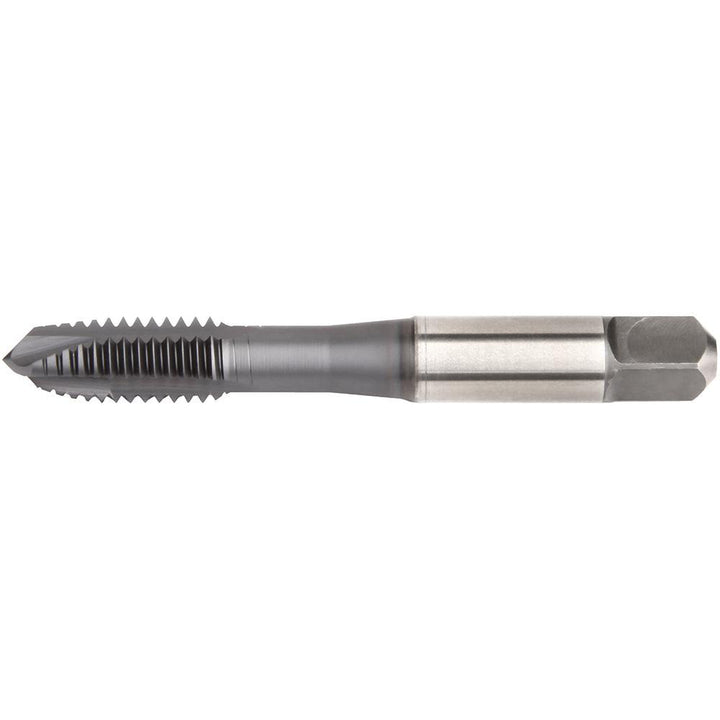

1/4-20 UNC HSS-E Spiral Point Tap, Black Oxide - Widia 5365806
MFR# 5365806Series VT-SPO
$20.71List $26.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingBlack Oxide
Description
The Widia 5365806 is a 1/4-20 UNC HSS-E Spiral Point tap with a Black Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH3
Coating finishBlack Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Neck length0.3700
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
