Widia

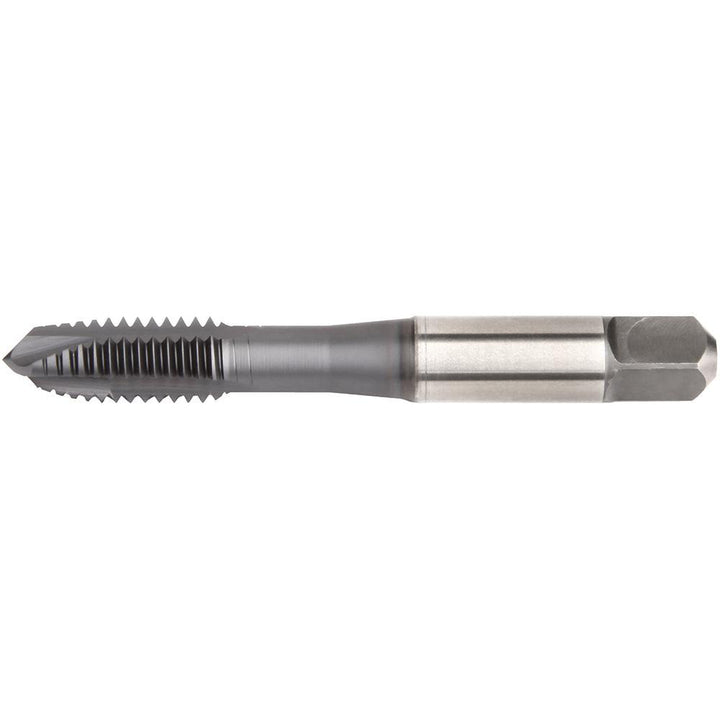

5/16-18 UNC HSS-E Spiral Point Tap, TiCN - Widia 5365932
MFR# 5365932Series VT-SPO
$30.11List $38.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The Widia 5365932 is a 5/16-18 UNC HSS-E Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH3
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeWP42EG
Measurement typeDecimal Inch
Neck length0.4500
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
