Widia

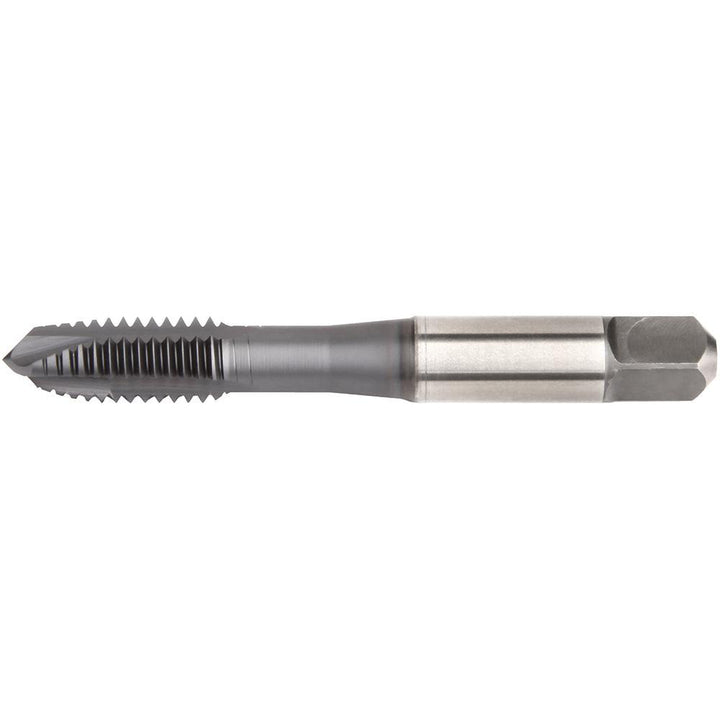

5/16-24 UNF HSS-E Spiral Point Tap, Black Oxide - Widia 5365945
MFR# 5365945Series VT-SPO
$23.16List $29.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingBlack Oxide
Description
The Widia 5365945 is a 5/16-24 UNF HSS-E Spiral Point tap with a Black Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH3
Coating finishBlack Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeWP49EG
Measurement typeDecimal Inch
Neck length0.4500
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
