Widia

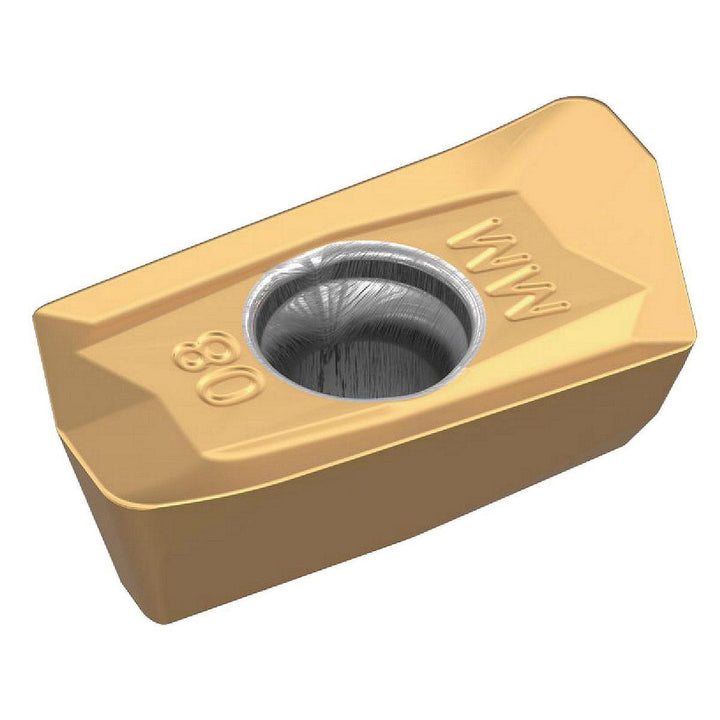

XDPT110408PDSRMM Solid Carbide Insert, Grade WP25PM, AlTiN - Widia 5415319
MFR# 5415319ISO/ANSI# XDPT110408PDSRMMCat# XDPT1102SRMMSeries VSM11
$13.72List $17.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWP25PM
MaterialSolid Carbide
CoatingAlTiN
Description
The Widia 5415319 is a XDPT110408PDSRMM solid carbide indexable insert, grade WP25PM, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT1102SRMM
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM11
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree75
Inscribed circle0.2714
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1102
Insert styleXDPT
Iso codeXDPT110408PDSRMM
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT1102SRMM
Manufacturer gradeWP25PM
Material applicationStainless Steel; Steel; Superalloys & Titanium; Hard Material; Cast Iron
Maximum depth of cut0.4626
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialCast Iron; Hard Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1628
Thickness range0.1500 to 0.1750
Width0.2714
