Widia

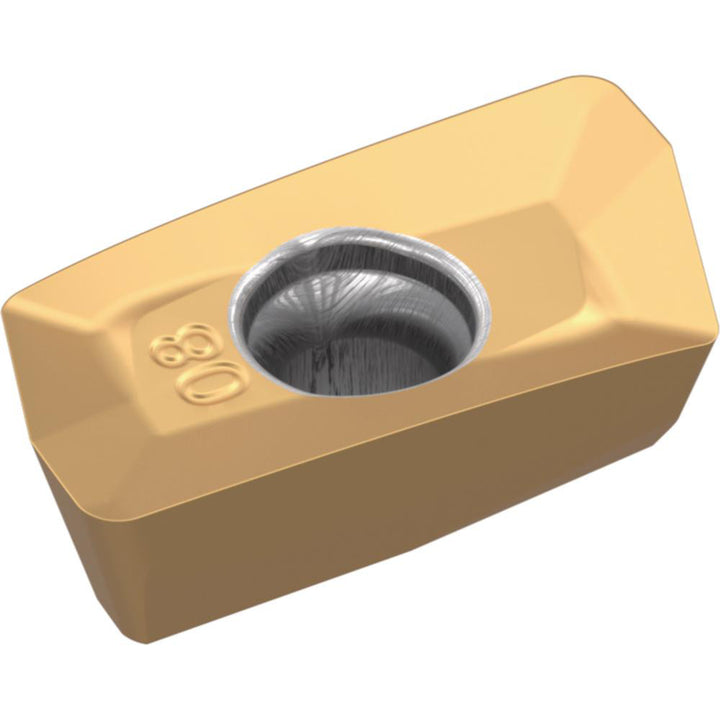

XDCT110408PDERML Solid Carbide Insert, Grade WU35PM, AlTiN - Widia 5415546
MFR# 5415546ISO/ANSI# XDCT110408PDERMLCat# XDCT1102ERMLSeries VSM11
$19.81List $25.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWU35PM
MaterialSolid Carbide
CoatingAlTiN
Description
The Widia 5415546 is a XDCT110408PDERML solid carbide indexable insert, grade WU35PM, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDCT1102ERML
Chip breakerML
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM11
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree75
Inscribed circle0.2720
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1102
Insert styleXDCT
Iso codeXDCT110408PDERML
Length0.5290
Length range0.5000 to 0.6000
Manufacturers catalog numberXDCT1102ERML
Manufacturer gradeWU35PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2720
