Widia

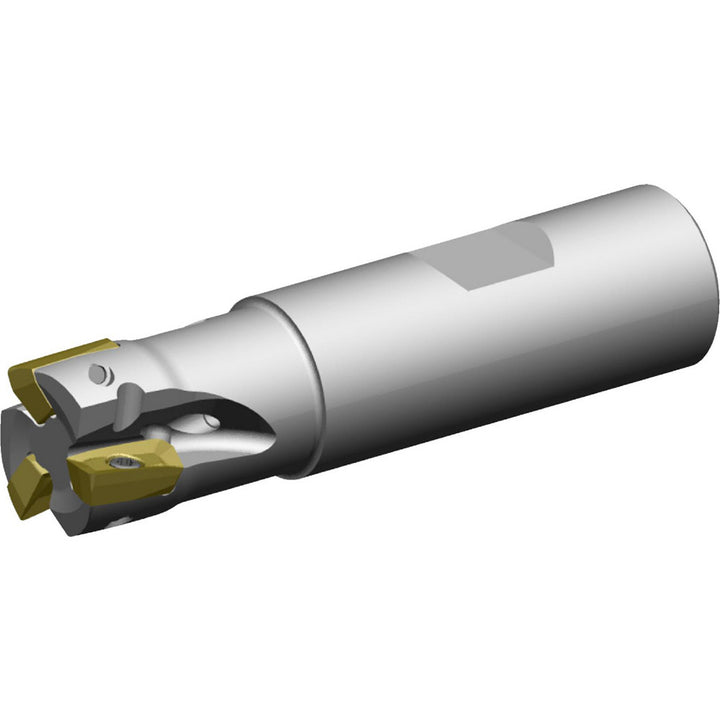

Indexable End Mills - Widia 5416418
MFR# 5416418Cat# VSM11D075Z03W075XD11Series VSM11
$333.11List $353.89
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Widia 5416418 indexable end mills. Suited for universal. Series VSM11.
Specifications
Complete insert compatibilityXD.T11..
Coolant hole diameter0.1970
Coolant throughYes
Cutter styleVSM
End mill typeShoulder Square End Mill
Flute typeSpiral
Hand of holderRight Hand
Head length1.1700
Insert compatibilityXD.T11..
Insert holding methodScrew
Iso numberVSM11D075Z03W075XD11
Lead angle90
Manufacturers catalog numberVSM11D075Z03W075XD11
Maximum depth of cut1.1701
Maximum ramping angle8.6
Maximum rpm36300.000
Multi use toolYes
Number of cutter inserts3
Number of flutes3
Primary workpiece materialUniversal
RakeNegative (Radial); Positive (Axial)
Rake angle-9.15 (Radial); 7.00 (Axial)
Shank diameter in3/4
Shank length2.0300
Shank taper sizeNone
Shank typeWeldon Flat
Tool applicationMilling; Pocketing; Ramping; Slotting
Tool materialSteel
Tool performanceGeneral Purpose
Usable length1.1700
