Widia
1/2-13 UNC Cobalt Tap, TiCN - Widia 5436465
MFR# 5436465Series VTSFT
$119.89List $153.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description

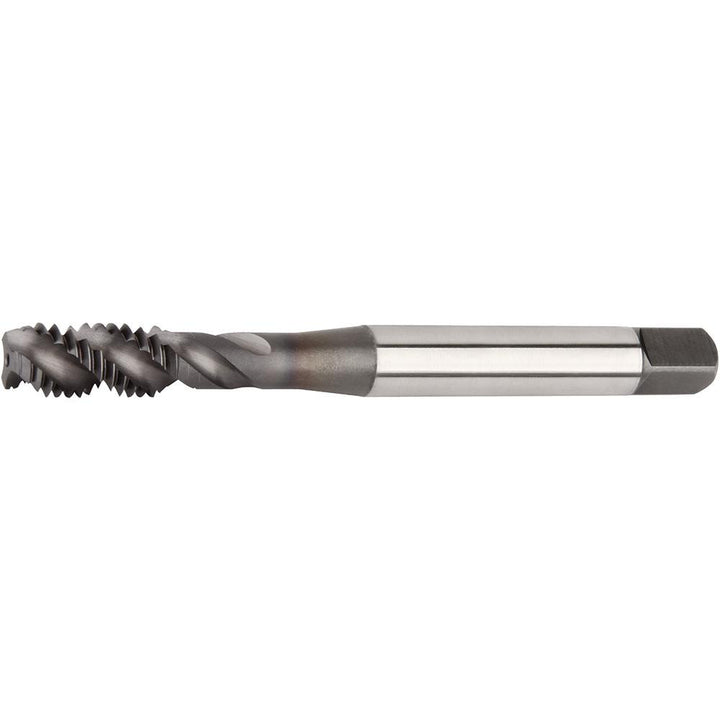

The Widia 5436465 is a 1/2-13 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWP42EG
Number of flutes3
Overall length3.9400
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3670
Square size0.2730
Tapping depth1.8500
Threads per inch13
Thread directionRight Hand
Thread length0.9100
Thread limitH5
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
