Widia

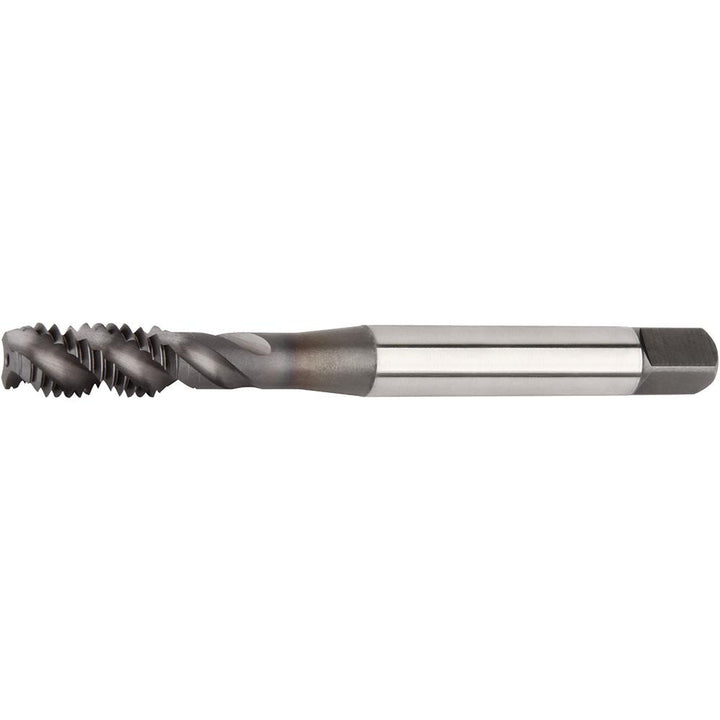

5/8-11 UNC Cobalt Tap, TiCN - Widia 5436468
MFR# 5436468Series VTSFT
$159.85List $205.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiCN
Description
The Widia 5436468 is a 5/8-11 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWP42EG
Number of flutes3
Overall length4.3300
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4800
Square size0.3570
Tapping depth2.0100
Threads per inch11
Thread directionRight Hand
Thread length0.9400
Thread limitH5
Thread pitch0.0909
Thread size in5/8-11
Thread standardUNC
