Widia
#10-32 UNF HSS-E Spiral Point Tap, TiN - Widia 5472645
MFR# 5472645Series VT-SPO
$29.92List $38.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingTiN
Description

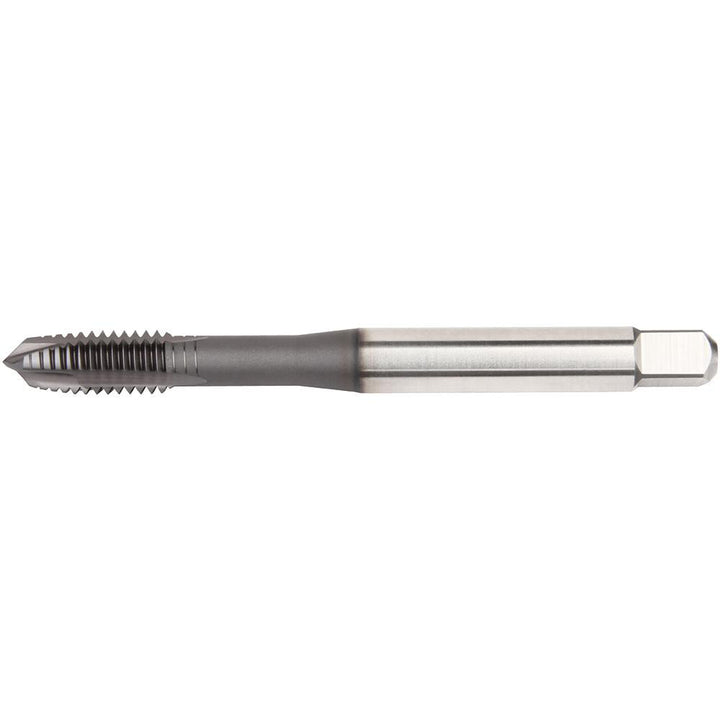

The Widia 5472645 is a #10-32 UNF HSS-E Spiral Point tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeWU41EG
Measurement typeDecimal Inch
Neck length0.5100
Number of flutes2
Overall length2.7559
OversizeNo
Shank diameter0.2362
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length0.4800
Thread limit3B
Thread pitch0.0313
Thread size in#10-32
Thread standardUNF
