Widia

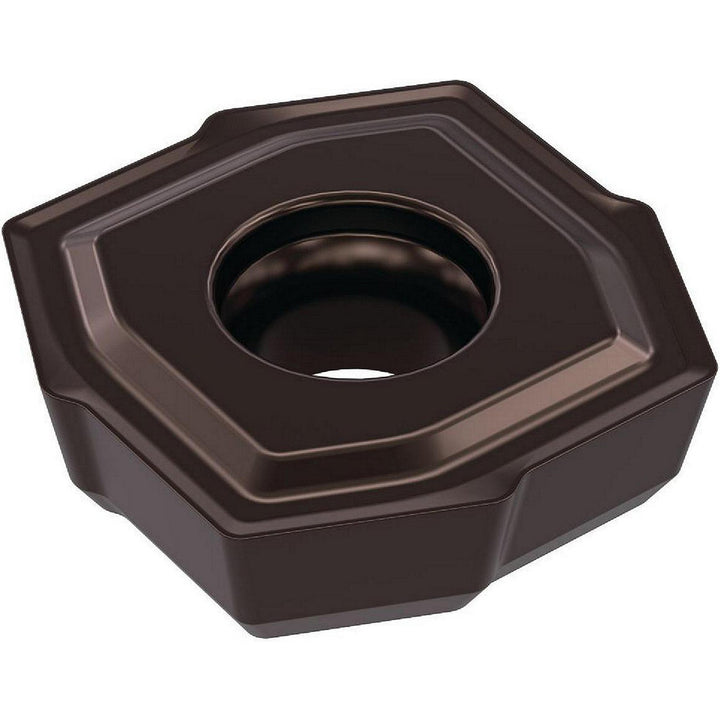

TCF180508GCV34 Carbide Insert, Grade WU40PH, TiAlN - Widia 5542476
MFR# 5542476ISO/ANSI# TCF180508GCV34Series TCF
$19.31List $24.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC45/64
GradeWU40PH
MaterialCarbide
CoatingTiAlN
Description
The Widia 5542476 is a TCF180508GCV34 carbide indexable insert, grade WU40PH, TiAlN coated. Suited for steel, high temperature alloys.
Specifications
Ansi codeTCF180508GCV34
ChipbreakerV34
Coating finishTiAlN
Coating processPVD
Compatible drill styleTCF
Corner radius in1/32
Hole diameter0.2362in
Included angle degree90
Inscribed circle in45/64
Insert handNeutral
Insert materialCarbide
Insert size18
Insert size code180508
Insert styleTCF
Iso codeTCF180508GCV34
Length0.5748
Manufacturer gradeWU40PH
Number of cutting edges4
Primary workpiece materialSteel; High Temperature Alloys
RakePositive
Relief angle11
ShapeIrregular
Thickness0.2126
Width0.5748
