Widia

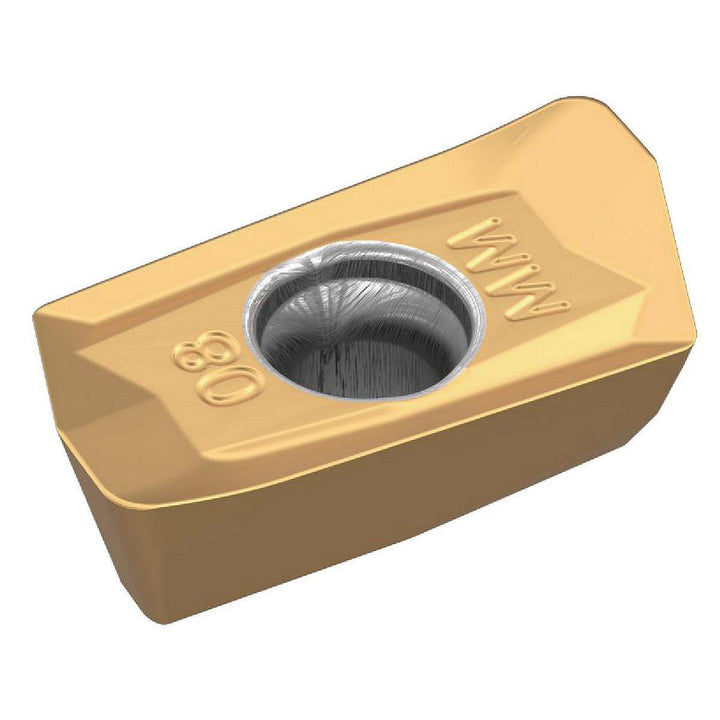

XDPT110408PDSRMM Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 5545063
MFR# 5545063ISO/ANSI# XDPT110408PDSRMMCat# XDPT1102SRMMSeries VSM11
$16.63List $21.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5545063 is a XDPT110408PDSRMM solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeXDPT1102SRMM
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM11
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree75
Inscribed circle0.2714
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1102
Insert styleXDPT
Iso codeXDPT110408PDSRMM
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT1102SRMM
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle15.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1628
Thickness range0.1500 to 0.1750
Width0.2714
