Widia

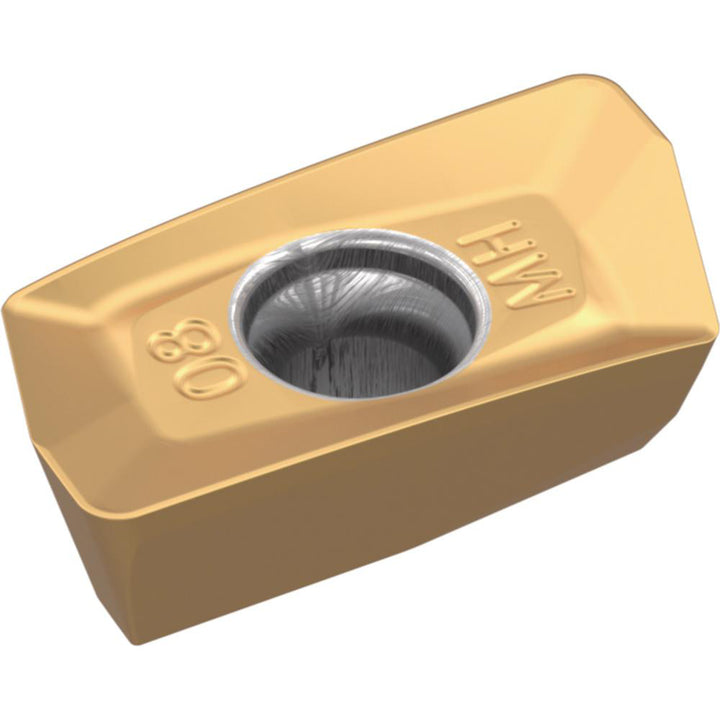

XDPT110408PDSRMH Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 5545064
MFR# 5545064ISO/ANSI# XDPT110408PDSRMHCat# XDPT1102SRMHSeries VSM11
$16.63List $21.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5545064 is a XDPT110408PDSRMH solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeXDPT1102SRMH
Chip breakerMH
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM11
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree75
Inscribed circle0.2720
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1102
Insert styleXDPT
Iso codeXDPT110408PDSRMH
Length0.5290
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT1102SRMH
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle15.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2720
