Widia

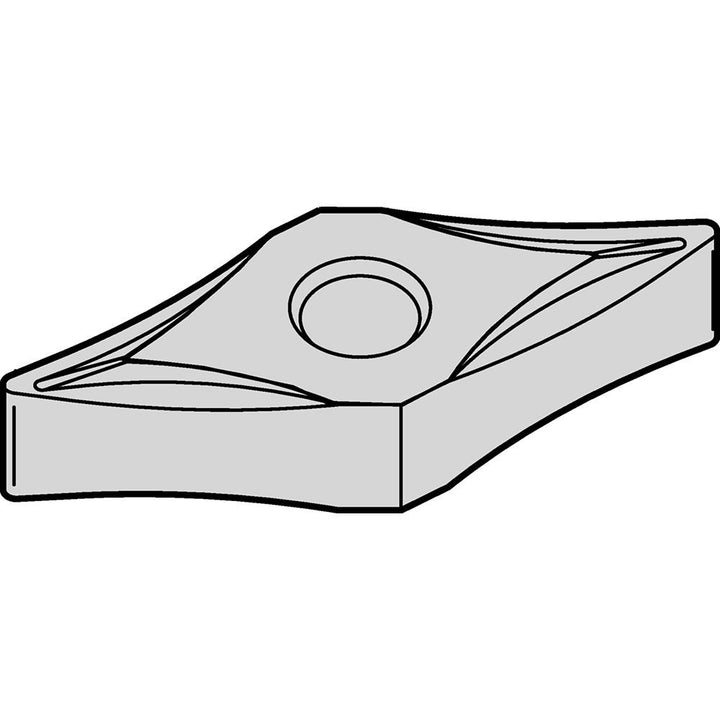

VNGP160401 Carbide Insert, Grade WS10PT, Multilayer TiAlN - Widia 5549195
MFR# 5549195ISO/ANSI# VNGP160402Series VNGP
$22.00List $27.72
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWS10PT
MaterialCarbide
CoatingMultilayer TiAlN
Description
The Widia 5549195 is a VNGP160401 carbide indexable insert, grade WS10PT, Multilayer TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNGP330
Ansi size code330
Clearance codeN
Coating finishMultilayer TiAlN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNGP330
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGP160401
Iso insert codeVNGP160402
Iso size code160402
Length range0.7000 - 10.0000
Manufacturers catalog number5549195
Manufacturer gradeWS10PT
Material gradeS10
Maximum depth of cut0.2179
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
