Widia

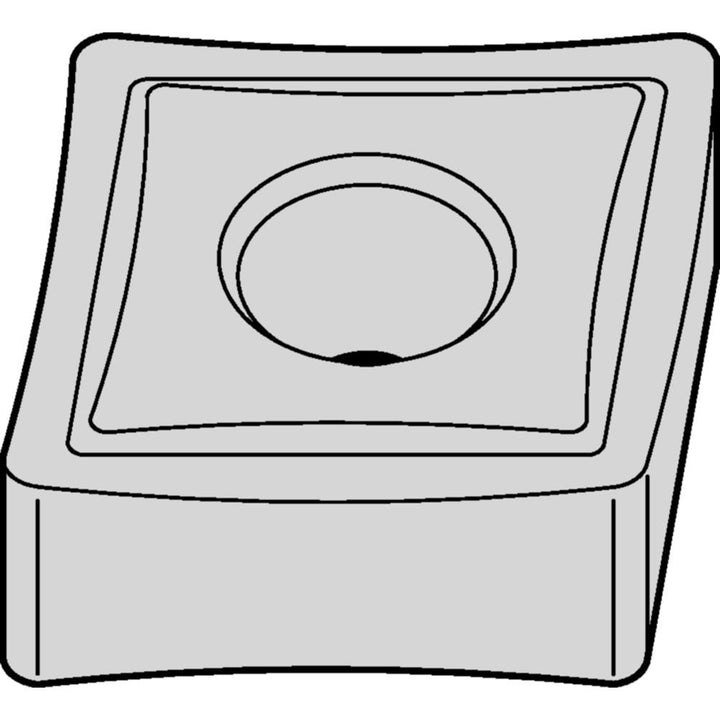

CNGP120404 Carbide Insert, Grade WU10HT - Widia 5549207
MFR# 5549207ISO/ANSI# CNGP431Series CNGP
$17.90List $22.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic
GradeWU10HT
MaterialCarbide
Description
The Widia 5549207 is a CNGP120404 carbide indexable insert, grade WU10HT. Suited for non-ferrous metal.
Specifications
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGP431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeRhombic
Insert size code431
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGP120404
Length range0.5000 - 0.6000
Manufacturers catalog number5549207
Manufacturer gradeWU10HT
Material gradeN10
Maximum depth of cut0.1692
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
Secondary workpiece materialNon-Ferrous Metal
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
