Widia

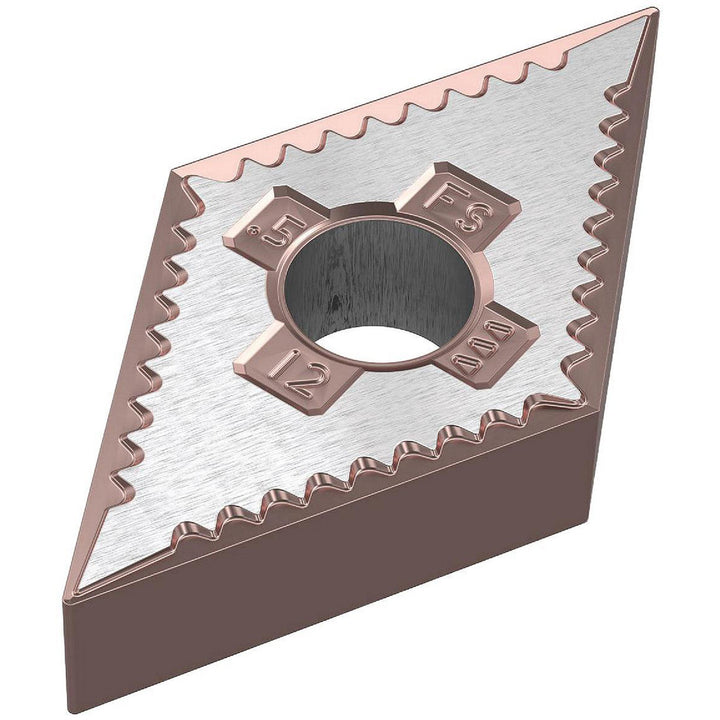

DNGG150408FS Carbide Insert, Grade WU10HT - Widia 5549993
MFR# 5549993ISO/ANSI# DNGG432FSSeries DNGG-FS
$22.34List $28.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic
GradeWU10HT
MaterialCarbide
Description
The Widia 5549993 is a DNGG150408FS carbide indexable insert, grade WU10HT. Suited for non-ferrous metal.
Specifications
Chip breakerFS
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNGG432FS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeRhombic
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150408FS
Length range0.7000 - 10.0000
Manufacturers catalog number5549993
Manufacturer gradeWU10HT
Material gradeN10
Maximum depth of cut0.0950
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialNon-Ferrous Metal
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
