Widia

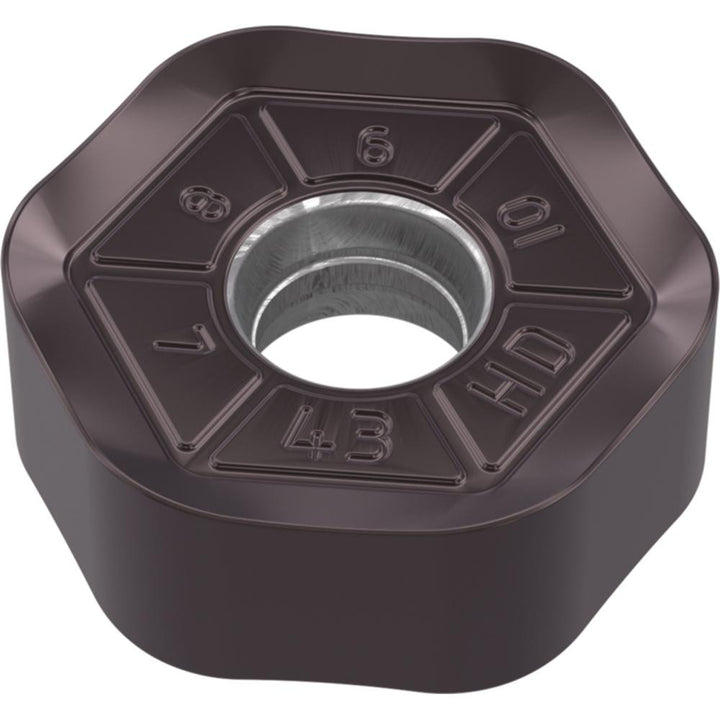

HNPJ0905ANSNHD Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 5550909
MFR# 5550909ISO/ANSI# HNPJ0905ANSNHDCat# HNPJ535ANSNHDSeries M1200
$21.03List $26.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5550909 is a HNPJ0905ANSNHD solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeHNPJ535ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code0905
Insert styleHNPJ
Iso codeHNPJ0905ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ535ANSNHD
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2151
Thickness range0.2000 to 0.2200
Width in5/8
