Widia

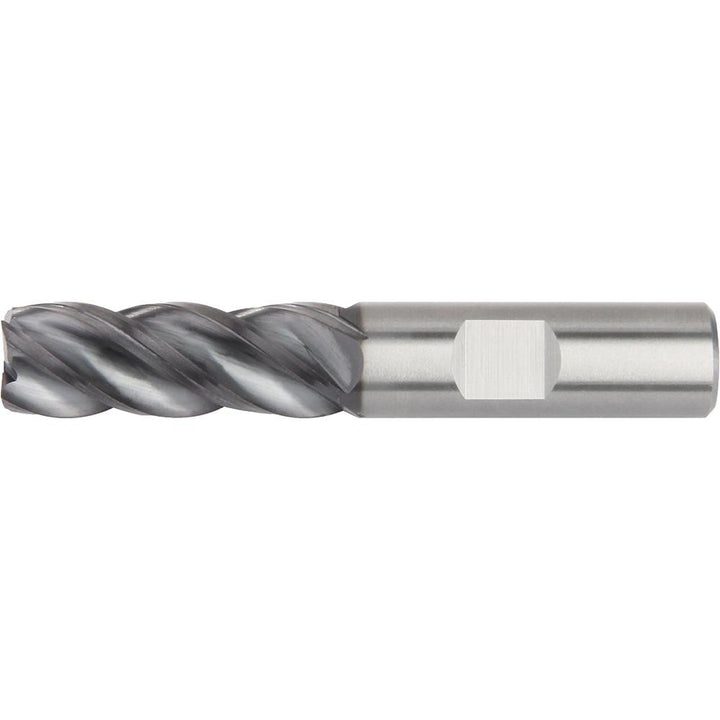

3/16in" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576348

MFR# 5576348Series 4V05

$37.31List $47.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16in

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5576348 is a 3/16in 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8in length of cut, 2-1/4in overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in5/8in

Length typeRegular

Material gradeWP15PE

Mill diameter in3/16in

Neck diameter0.1875in

Neck length0.6250

Number of flutes4

Overall length in2-1/4in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length0.625

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/16in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
