Widia

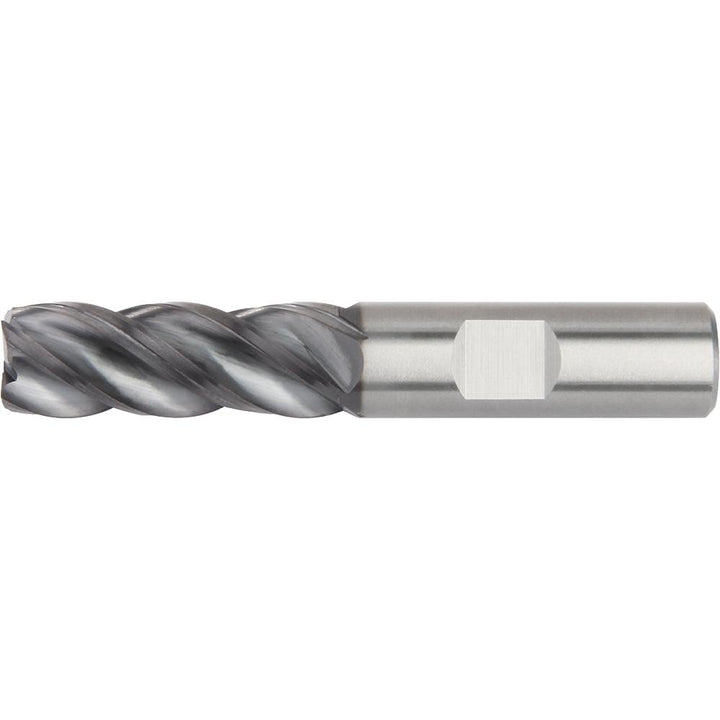

1/4in" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576510

MFR# 5576510Series 4V05

$45.10List $57.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4in

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5576510 is a 1/4in 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 3/4in length of cut, 2-1/2in overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in3/4in

Length typeRegular

Material gradeWP15PE

Mill diameter in1/4in

Neck diameter0.2500in

Neck length0.7500

Number of flutes4

Overall length in2-1/2in

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length0.75

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in1/4in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
