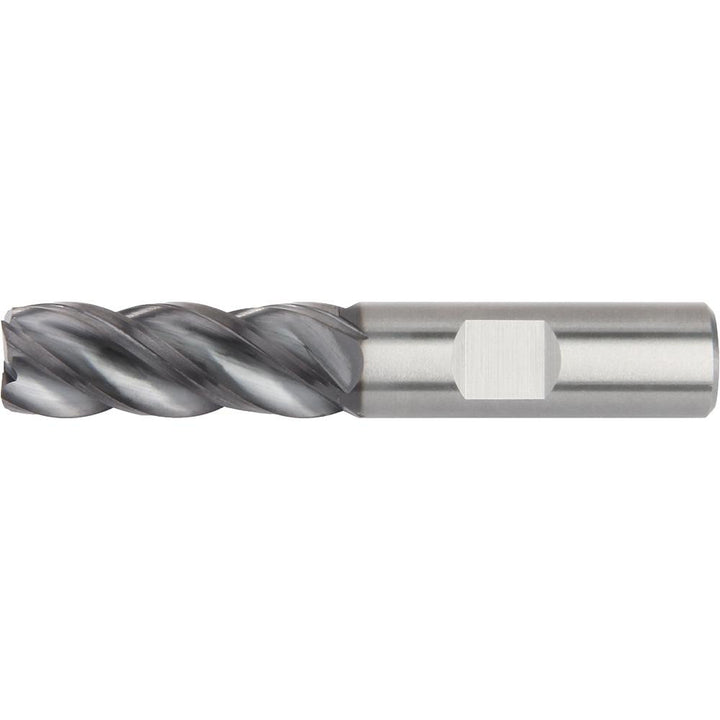

3/4" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576529

MFR# 5576529Series 4V05

$341.47List $437.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5576529 is a 3/4 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1-1/2

Length typeRegular

Material gradeWP15PE

Mill diameter in3/4

Neck diameter0.75

Neck length1.5000

Number of flutes4

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length1.5

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/4

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
