Widia

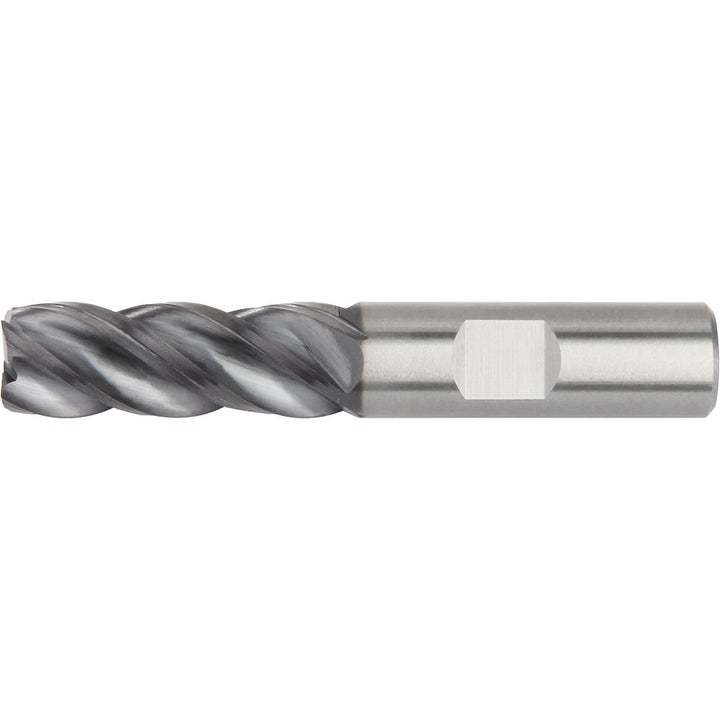

1/8in" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576591

MFR# 5576591Series 4V05

$28.31List $36.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8in

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5576591 is a 1/8in 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1/4in length of cut, 1-1/2in overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1/4in

Length typeRegular

Material gradeWP15PE

Mill diameter in1/8in

Neck diameter0.1250in

Neck length0.2500

Number of flutes4

Overall length in1-1/2in

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length0.25

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in1/8in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
