Widia

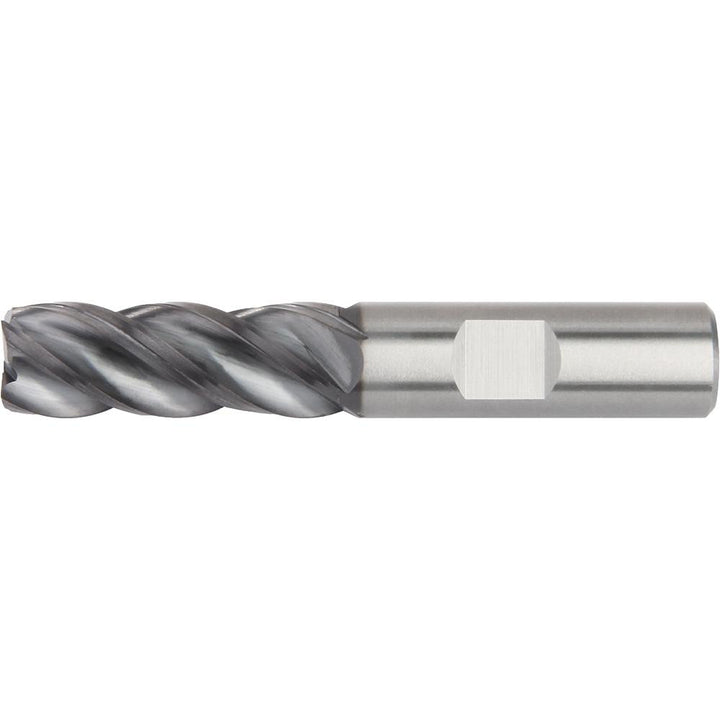

3/16" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576593

MFR# 5576593Series 4V05

$36.42List $46.71 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5576593 is a 3/16 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 5/16 length of cut, 1-1/2 overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in5/16

Length typeRegular

Material gradeWP15PE

Mill diameter in3/16

Neck diameter0.1875

Neck length0.3125

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length0.3125

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/16

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
